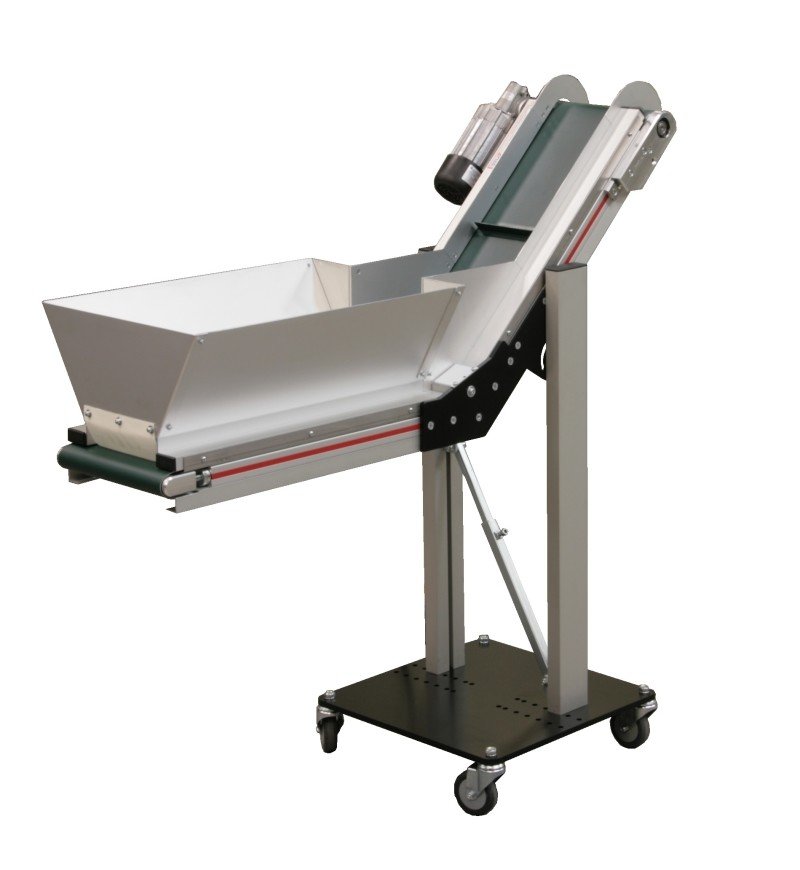

Small Belt Conveyor Type INL-BE 020

Small Belt Conveyor with Negative Angle

Many L-shaped small conveyor belts are equipped with the base frame type BE 020. It consists of a stable steel base plate with two vertically mounted anodised aluminium profiles. The base frame and conveyor belt frame are connected with rotating modules whose height and tilt can be adjusted step-less.

The freely protruding flat part of the belt can be lowered down to the floor in order to ensure minimal transfer heights. Combined with the standard 20mm height lateral guide as well as carrier bars with a height of up to 15mm, a transfer height of less than 80mm can be realised.

The angled conveyor belts in this model are often used as discharge belts under production or packaging machines in order to transport piece goods or bulk goods in containers or to subsequent processing.

Product Information
Small Belt Conveyors

Highlights

Stable against collapse and reasonably priced - these are the characteristics of base frame type BE 020. A compact steel base plate is the foundation for stable aluminium profiles which are mounted to the lateral sides of the conveyor belt frame. The maximum frame width of the conveyor belt is 350mm.

Large height adjustment range
Step-less tilt adjustment between 0° and 60°
Base frame supports can be moved along the body of the belt
Several base frames are used for longer belts

Belts

We have the right belt for your every conveyance need, guaranteed!
More information on belts for our conveyors

Drive Units

Power, performance and profitability - these criteria are met by the drives from MTF Technik. The right drive is designed for your conveyor and your conveyance requirements.
More information on the drives for our conveyors

Base Frames

The MTF Multi-Tech bases bring flexibility and stability "on wheels".
More information on the bases for our conveyors
