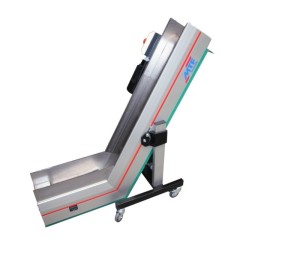

The negatively angled Multi-Tech magnetic conveyor belts type NMF-HE 020 are individually adapted to the specific requirements of each customer. Five different conveying angles between 30° and 90° are available. This makes these conveyor belts ideal for transporting magnetic parts steeply upwards in a space-saving manner.

Smaller L-shaped angled magnetic conveyors can be equipped with the HE 020 base frame. This consists of an H-shaped welded base frame with vertically mounted aluminum profiles, which are attached to the side of the conveyor body via pivot points. The underframe is generally suitable for small conveyor belts with a total length of up to 2,000 mm and a maximum width of 500 mm. The belt body consists of an aluminum profile system. The sturdy profiles each have a groove on the side and underside of the conveyor belt, which can be used to attach underframes, drive units, sensors, and other components. This avoids time-consuming drilling or welding work and ensures maximum flexibility. Integrated into the belt body are plastic guide rails in which two circulating chains are guided. Magnetic carrier strips are mounted at regular intervals on these chains, running along a stainless steel sliding plate integrated into the belt body. Ferritic material lying on the sliding plate is attracted by the magnetic force and pulled along. Strong neodymium magnets ensure high holding power and efficient part transport. The sliding plates are available with either a smooth or textured surface, depending on the application. The textured surface is particularly important for fibrous parts, preventing them from sticking and ensuring safe transport. Additional wear plates are installed in the conveying area as needed. Spring tensioners are integrated into the conveyor belt construction to keep the chains under sufficient tension at all times, thus reducing adjustment and maintenance efforts. The belt body is completely encapsulated, so there are no external moving parts. This ensures maximum occupational safety. The Multi-Tech magnetic conveyor belts type NMF-HE 020 are equipped with powerful three-phase motors, which are adapted to the specific conveying task with different motor outputs, gear ratios, and controls.
