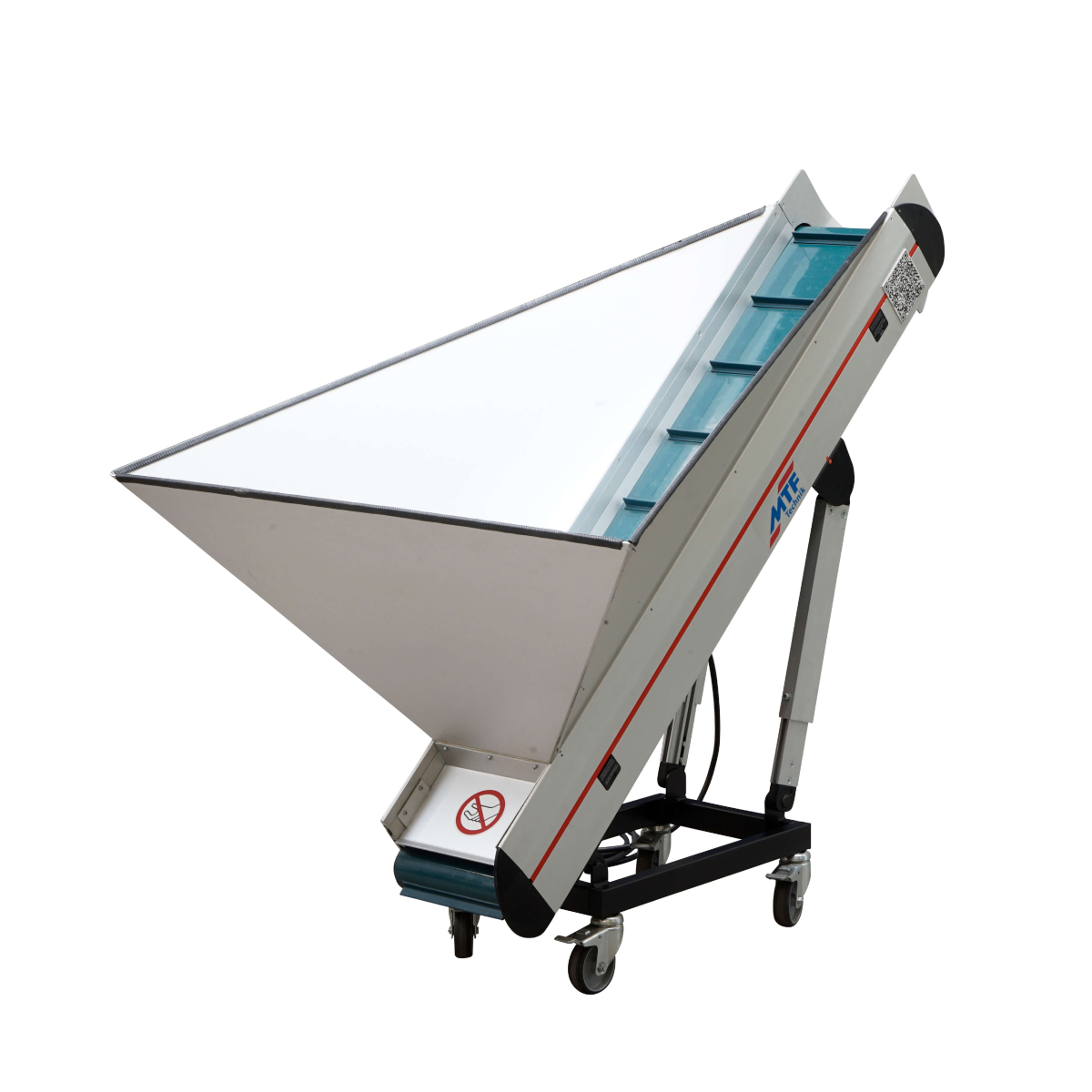

Straight conveyor belt type GLD-LD 070, Serial no. 15343
Straight inclined dosing conveyor with bunker
Straight conveyor belt type GLD-LD 070, Serial no. 15343
Straight inclined dosing conveyor with bunker
Base frame: mobile
Belt Type: PVC teal coloured, sleek
Drive unit: Internal motor with clocked belt speed
- Description
- Advantages
- Technical data
This straight bunker conveyor belt was used as a test device. It is in good used condition.
Conveyor belts serviced by the manufacturer
Delivery from stock
Attractive prices for used conveyor belts
short delivery times
fast availability
Conveyor belts tested by the manufacturer
Feature
Value
Dimensions:
Length: 1,500 mm
Nominal width: 200 mm
Usable width: 255 mm
Guide profile height: 80 mm
Belt type:
MTF No.11
Material: PVC, teal colour, sleek
Temperature resistance: -15°C to +90°C
antistatic
cond. oil and grease resistant
not FDA approved
Cleats:
Type: T
Quantity: 19 pieces
Material: PVC
Height: 20 mm
Length: 240 mm
Drive Unit:
Internally positioned motor with clocked belt speed
Voltage: 400V
Frequency: 50Hz
Belt speed: 4.8 m/min (clocked)
```
Equipment:
Top-mounted hopper Type GLD-G
Material: Stainless steel
Base frame:
Type: LD 070
Version: drivable
Serial No.: 15343
Ident. No.: 450921
