Belt conveyor type GL-IE 020

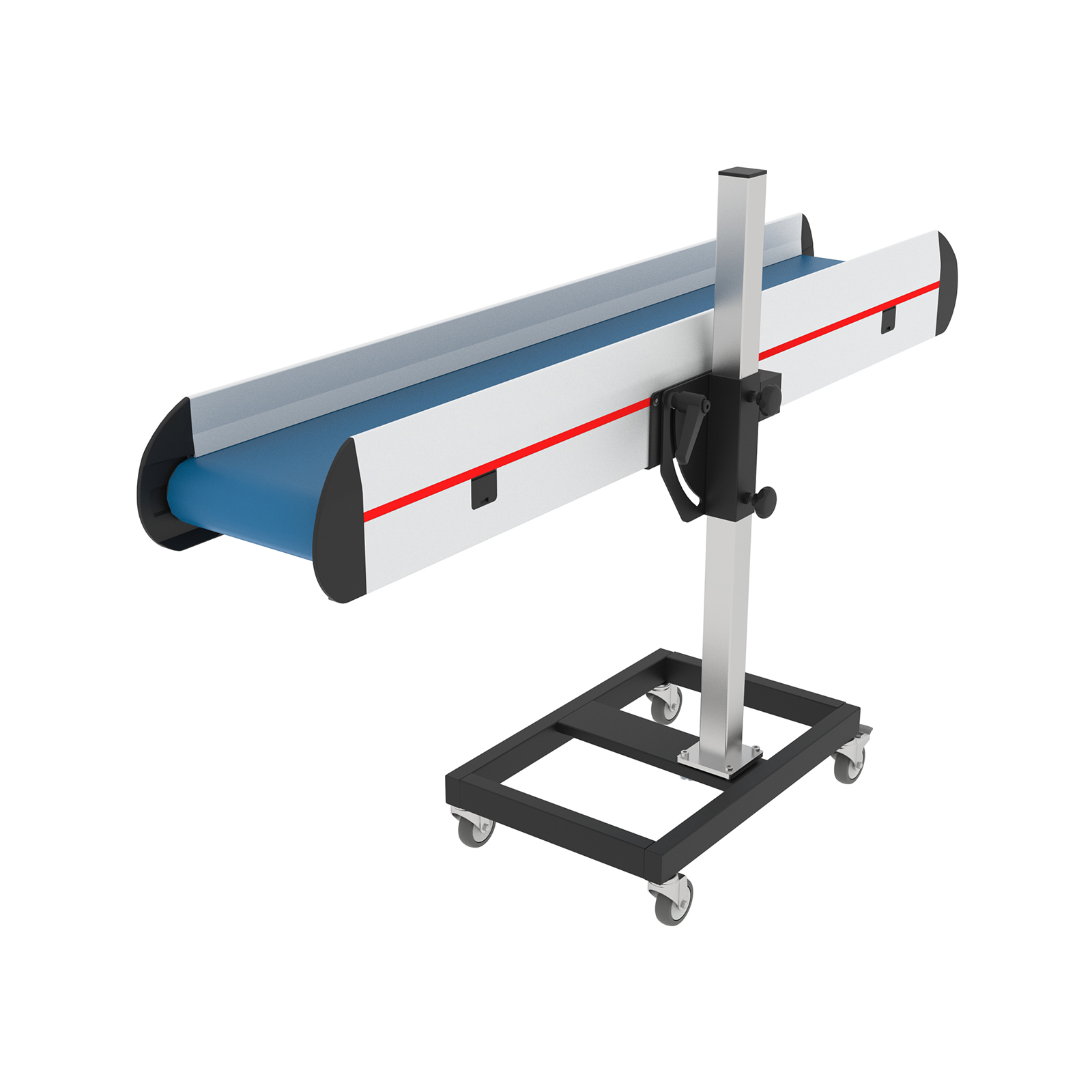

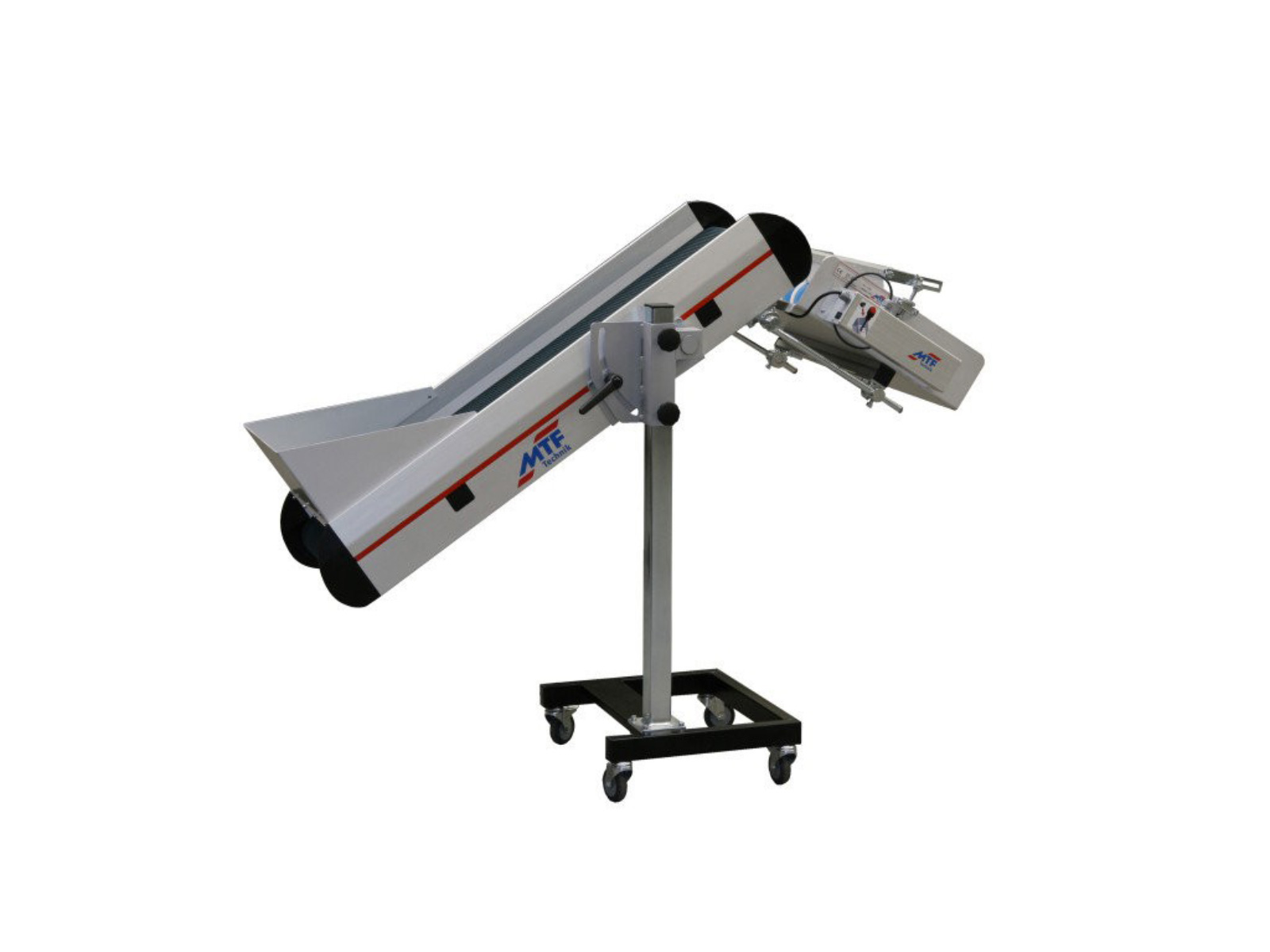

Straight belt conveyor with underframe mounted on one side
Belt conveyor type GL-IE 020
Straight belt conveyor with underframe mounted on one side
Base frame: stepless height adjustment
Incline: Band slope between 0° and +60°
Protrusion: Laterally protruding underframe parts
- Description
- Advantages
- Technical data
- Media
The straight Multi-Tech belt conveyors of type GL-IE 020 are assembled based on a comprehensive modular system and can be individually configured to meet the specific requirements of customer projects.
The unique MTF profile technology combines a rigid inner frame with various stable outer profiles to allow for different lateral guide heights. Furthermore, this two-part system offers the unbeatable advantage that the outer profiles can be folded down for maintenance purposes, for example, to easily replace the belt. The side profiles feature two grooves along the entire belt length, which can be used for mounting substructures, drives, or other attachments. This guarantees the highest quality and flexibility. In the GL-IE 020 conveyor belt version, the base frame supports the belt body at its center of gravity. This allows for convenient, stepless adjustment of the conveying angle between 0° and 60° without the use of tools. The conveyor belt's height can be continuously adjusted along the stable, vertical support tube. The single-sided connection of the base frame to the conveyor belt body ensures minimal obstructions. This allows the conveyor belt to be used, for example, directly alongside a production machine. Conveyor belts of this type are therefore primarily used where space is limited or where obstacles are already present. There are 33 conveyor belts made of different materials with different surface structures and properties from the MTF Technik standard range, which can be mounted on these devices. Additional special belts can be provided if required.
The Multi-Tech belt conveyor type GL-IE 020 can be equipped with five different drive units, which, in combination with various gear ratios and controls, ensure optimal adaptation to the conveying task.
Configure your individual belt conveyor quickly and easily in our free online configurator and immediately receive a 3D CAD model in your desired data format. Use the configuration for your inquiry and receive a non-binding offer immediately. Our consultants will be happy to assist you.
Each GL-IE 020 type belt conveyor is custom-made and individually tailored to the specific application.
The high-quality workmanship of all Multi-Tech components guarantees long-lasting and reliable use.
The compact design with an optimal ratio of external to usable width allows for space-saving integration.
Large height adjustment range
The base frame can be attached to the conveyor belt on one side only, thus allowing for easy integration into machine shafts or space-saving placement parallel to a production machine.
Perfect solution for smaller conveyor belts that need to be adjusted frequently (e.g., for use on different machines)
Feature
Value
Width:
200 mm to 500 mm
length:
500 mm to 2,000 mm
Conveyor speeds:
from 0.3 m/min to 15.7 m/min [max. 320 m/min]
Band stress:
7kg/m [max. 500kg total load]
Deflection:
Ø80 mm, as rolling knife edge Ø32, Ø16, Ø9, Ø8 mm
Lateral guiding height:
0 mm, 7 mm, 40 mm, 80 mm, >80 mm with guide plates
Drive types:
external, lateral, below, in the belt body, flange motor, drum motor, center motor
For horizontal transport and inclines:
up to 60° [90°]
Special dimensions and designs:
upon request
Included as standard in the configurator:
No
