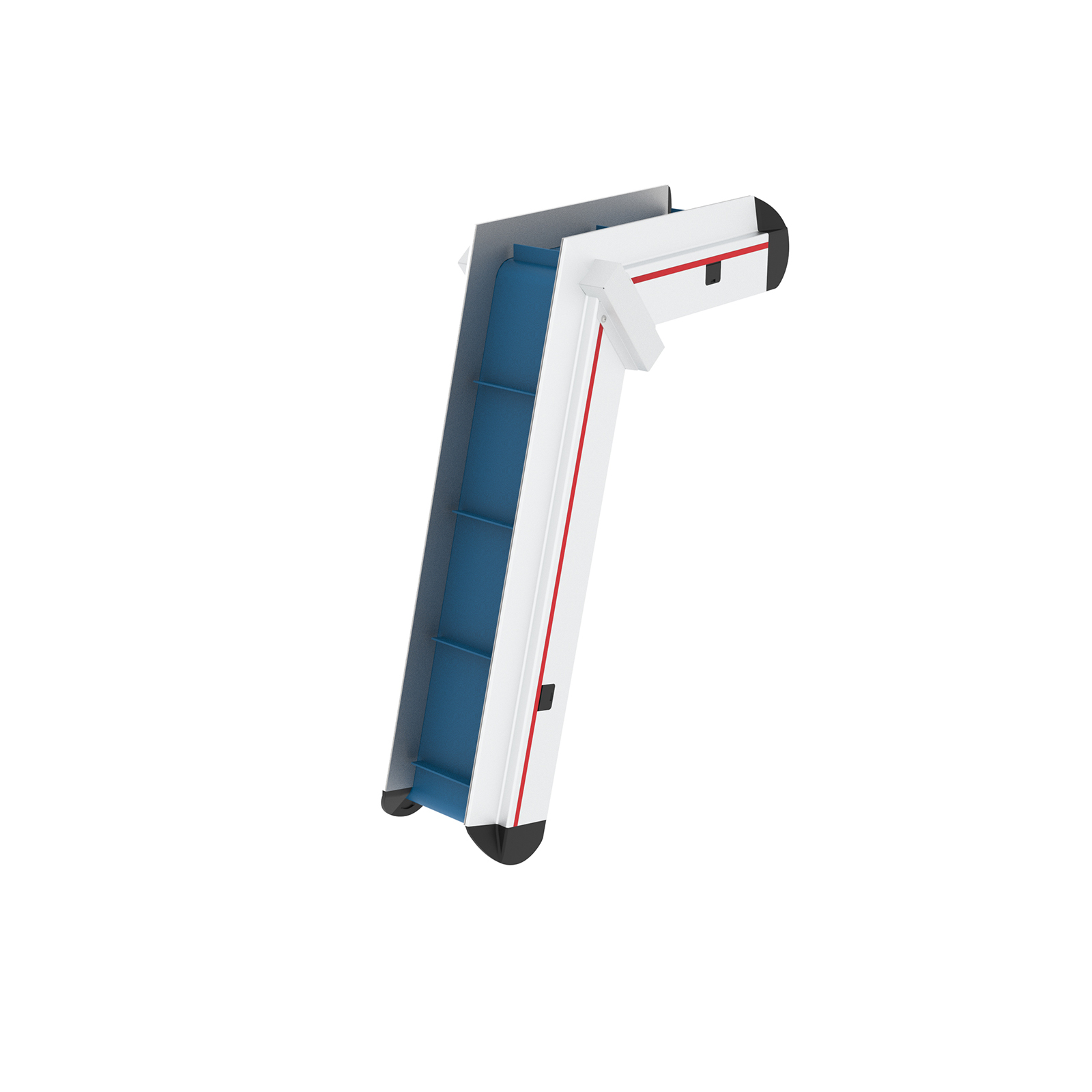

The positively angled Multi-Tech belt conveyors PLF 75° are assembled using a comprehensive modular system and feature a fixed conveying angle of 75 degrees.

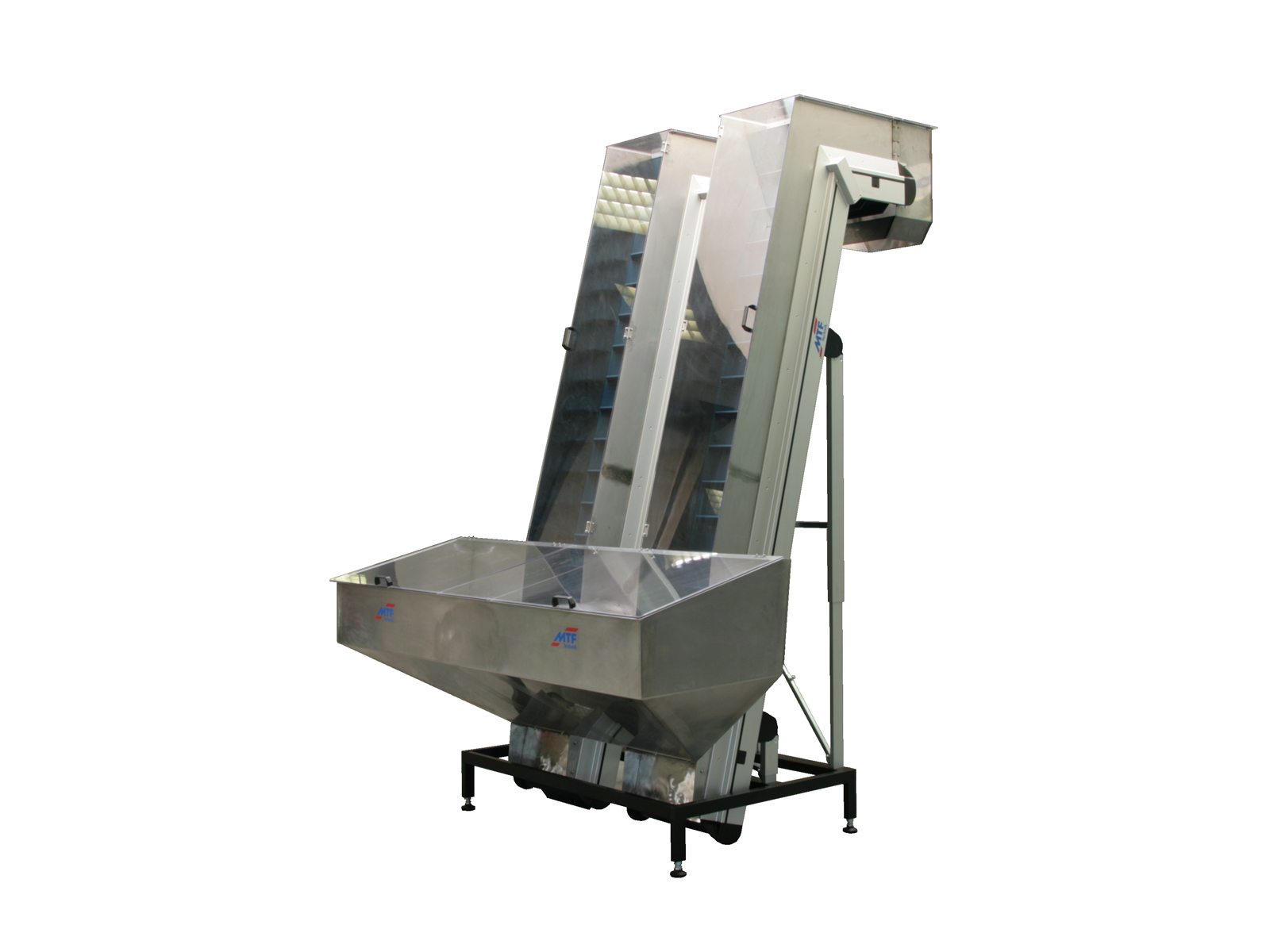

The unique MTF profile technology combines a rigid inner frame with various stable outer profiles to allow for different lateral guide heights. Furthermore, this two-part system offers the unbeatable advantage that the outer profiles can be folded down for maintenance purposes, for example, to easily replace the belt. The side profiles feature two grooves along the entire belt length, which can be used to attach subframes, drives, or other accessories. This guarantees the highest quality and flexibility. These conveyor belts are used wherever space is limited and they are permanently integrated into a feeding process. There, they serve, for example, as feeders for vibratory pots, filling machines, or other automation or assembly processes. They relieve machine operators by allowing the goods to be placed at an ergonomic operating height, with the conveyor belt taking over the transport. Furthermore, these are also used in combination with horizontal feed conveyors that have a hopper and can therefore accommodate larger quantities of products. These feed conveyors then slowly meter the parts onto the steep section of the angled conveyor to supply a subsequent process with material. With such steeply inclined conveyors, an exact specification of the conveyed material in terms of geometry and conveying quantity is essential. Ideally, sample parts should be available to test the conveying process beforehand. Not every load can be transported at such a steep incline. A wide variety of conveyor belts made of different materials with varying surface structures and properties from the MTF Technik standard range are available and can be mounted on these devices. Additional special belts can also be provided if required. The Multi-Tech angle conveyor belts type PLF 75° They can be equipped with five different drive units, which, in combination with various gear ratios and controls, ensure optimal adaptation to the conveying task. Building on the basic equipment, a wide variety of accessories and equipment elements can be added, e.g., metal detectors, fans, cooling systems, heaters, ionization devices, conveyor belt covers, sensors, chutes, separating attachments, etc.
