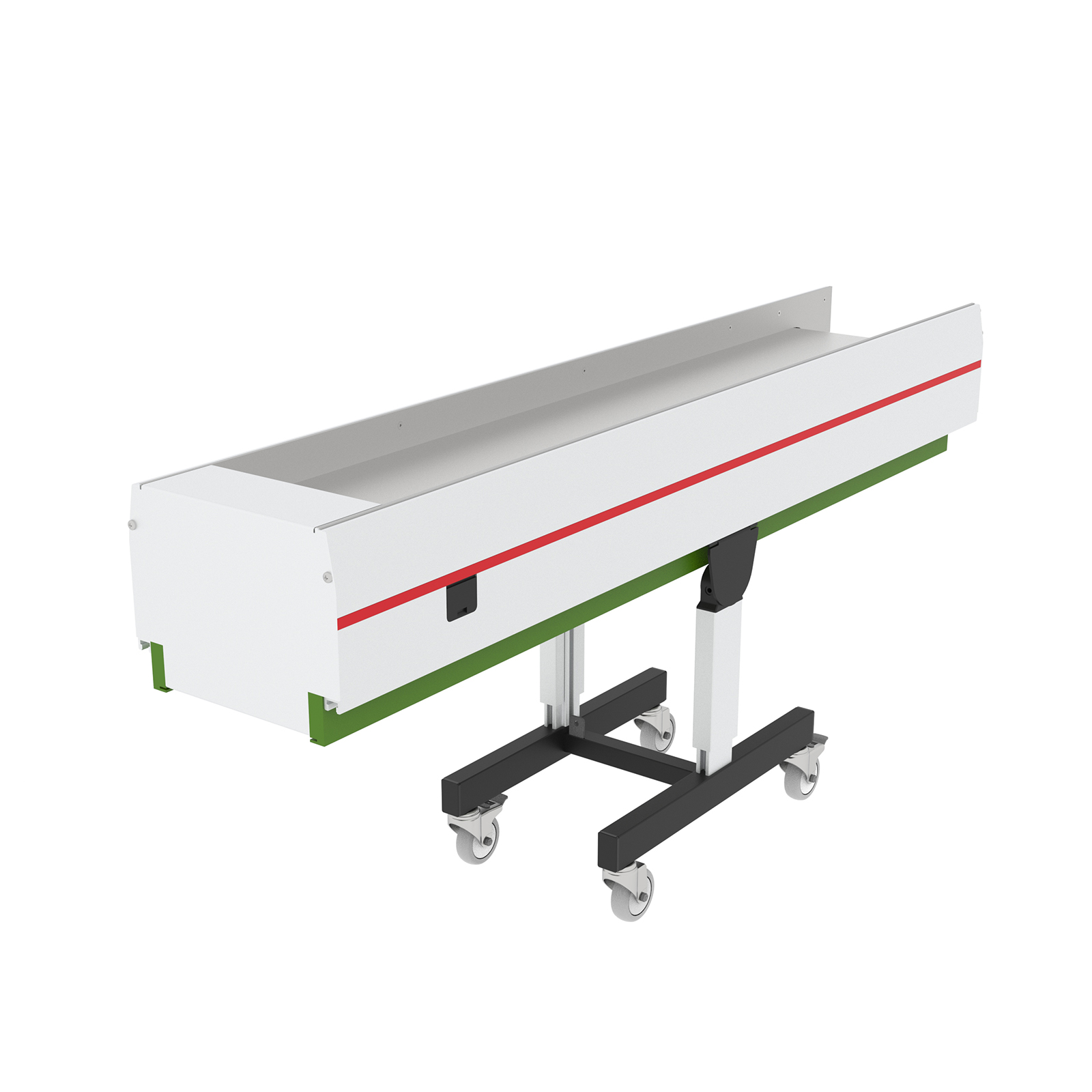

The straight Multi-Tech magnetic conveyor belts type GM-HE 010 are individually adapted to the specific requirements of each customer.

The straight Multi-Tech magnetic conveyor belts with a belt length of up to 2,000 mm and a width of up to 500 mm can be equipped with a substructure of type HE 010. In this configuration, they are frequently used as a conveyor belt for removing stamping scrap. The substructure consists of an H-shaped welded base frame with vertically mounted, telescopically extendable aluminum profiles. These are attached via a pivot point in the lower grooves of the conveyor belt profiles. This leaves the entire side groove fully available for the flexible attachment of additional elements such as sensors. The conveyor belt can be continuously adjusted in height and angle. In special applications, the base frame even allows for a theoretical tilt angle of 90°. The belt body consists of an aluminum profile system. The sturdy profiles each have a groove on the side and below the conveyor belt, which can be used for attaching base frames, drive units, sensors, and other components. This avoids time-consuming drilling or welding work and ensures maximum flexibility. Integrated into the conveyor body are plastic guide rails in which two circulating chains are guided. Magnetic carrier strips are mounted at regular intervals on these chains, running along a stainless steel sliding plate integrated into the conveyor body. Ferritic material lying on the sliding plate is attracted by the magnetic force and pulled along. Strong neodymium magnets ensure high holding power and efficient part transport. The sliding plates are available with either a smooth or textured surface, depending on the customer's specific requirements. The textured surface is particularly important for fibrous parts, preventing them from sticking and ensuring safe transport. Additional wear plates are installed in the conveying area as needed. Spring tensioners are integrated into the conveyor belt construction to keep the chains under sufficient tension at all times, thus reducing adjustment and maintenance efforts. The belt body is completely encapsulated, so there are no external moving parts. This ensures maximum occupational safety. Multi-Tech magnetic conveyor belts are equipped with powerful three-phase motors, which are adapted to the specific conveying task with different motor outputs, gear ratios, and controls.
