Steel Plate Conveyor type GV-AM 140
Straight steel hinge plate conveyor belt with several individually movable and adjustable supports on the side of the belt body
Steel Plate Conveyor type GV-AM 140
Straight steel hinge plate conveyor belt with several individually movable and adjustable supports on the side of the belt body
Base frame: stepless height adjustment
Incline: Band slope between -60° and +60°
Protrusion: Laterally protruding underframe parts
- Description
- Advantages
- Technical data
- Media
Straight steel hinge plate conveyors of type GV-AM 140 are particularly suitable as small discharge conveyors, e.g., from die-casting machines or stamping presses.

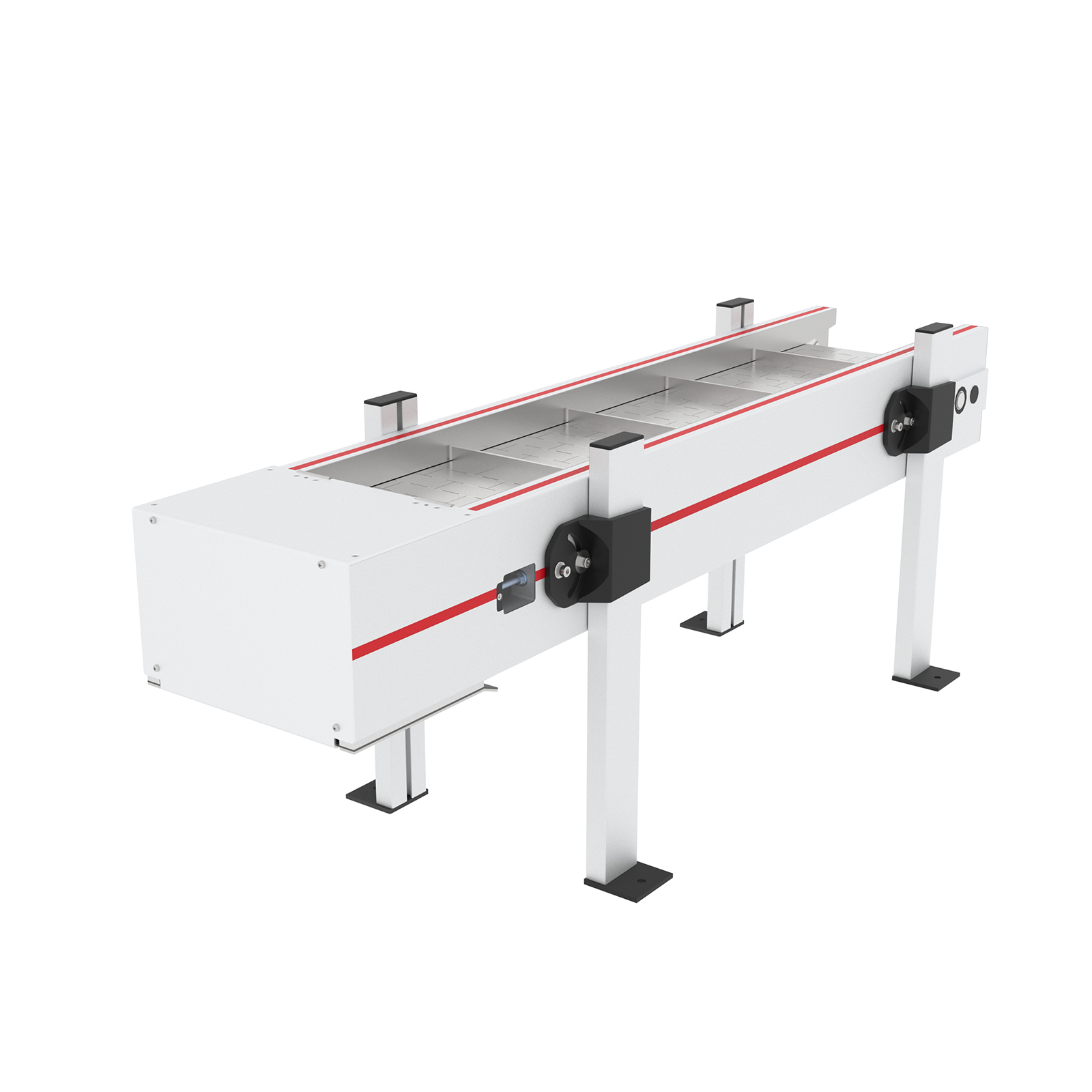

The supports of the AM 140 base frame are mounted in the lateral conveyor grooves and can thus be moved along the entire conveyor body, as well as individually adjusted in height and inclination. This allows uneven floors or sharp edges in the machine bed to be optimally compensated for.
Robust design, engineered for daily industrial use
High-quality materials from renowned suppliers for maximum quality and availability
Compact design with optimal external width/usable width ratio
Individual attachment of the underframe supports to the belt body
The individual base supports can be adjusted independently in height and tilt.
Uneven ground or obstructions at the installation site can be compensated for.
Feature
Value
Width:
200 mm to 500 mm
length:
700 mm to 12,000 mm [max. 25,000 mm]
Conveyor speeds:
from 2.4 m/min to 16.3 m/min
Band stress:
20 kg/m [max. 500 kg total load]
Hinge plate thickness:
1.5 mm
Hinge plate division:
38.1 mm
Deflection:
Ø100 mm
Lateral guiding height:
46 mm, >45 mm with guide plates
Drive types:
Flange motor
adjustment:
For horizontal transport and inclines up to 60°
