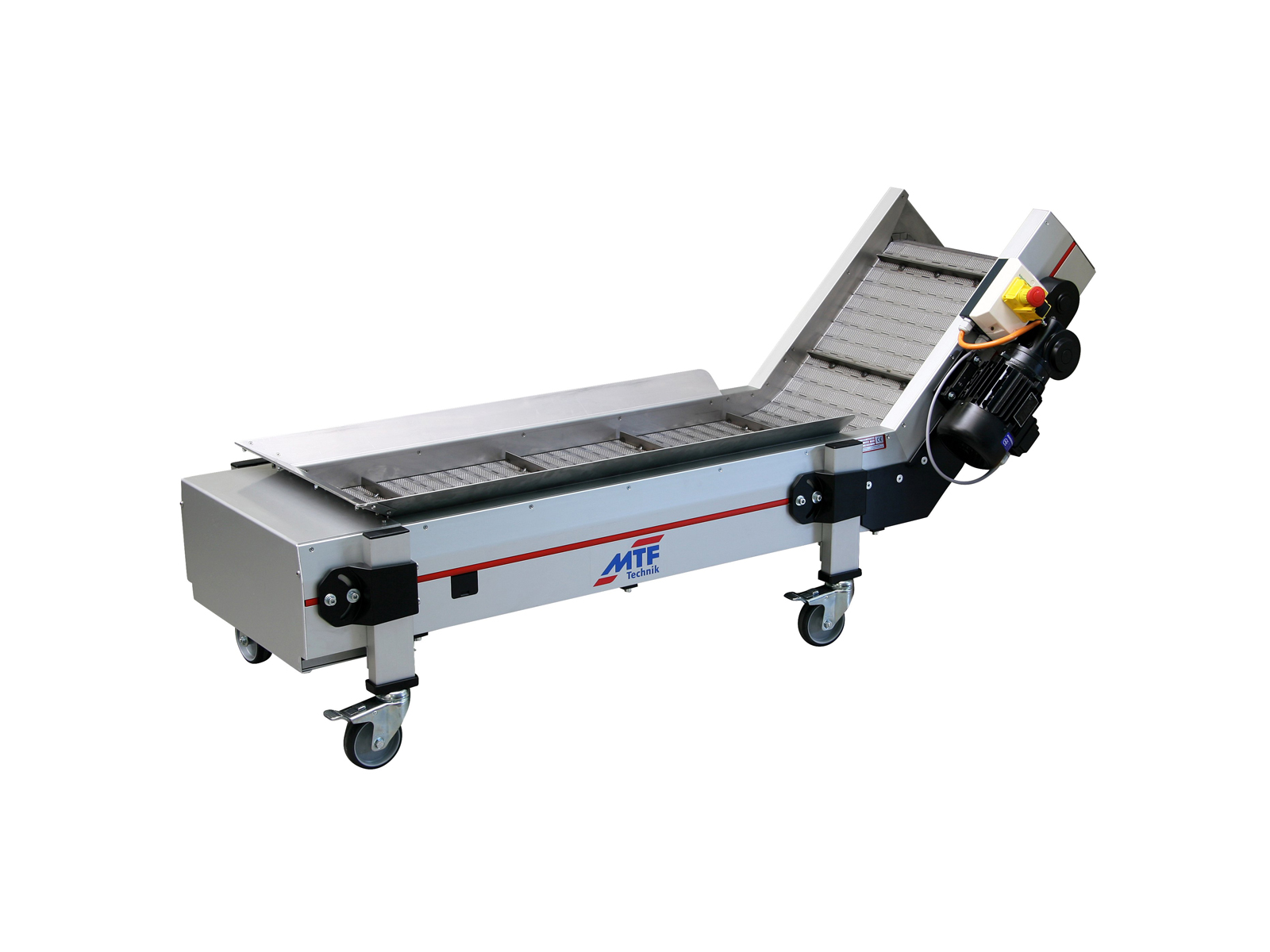

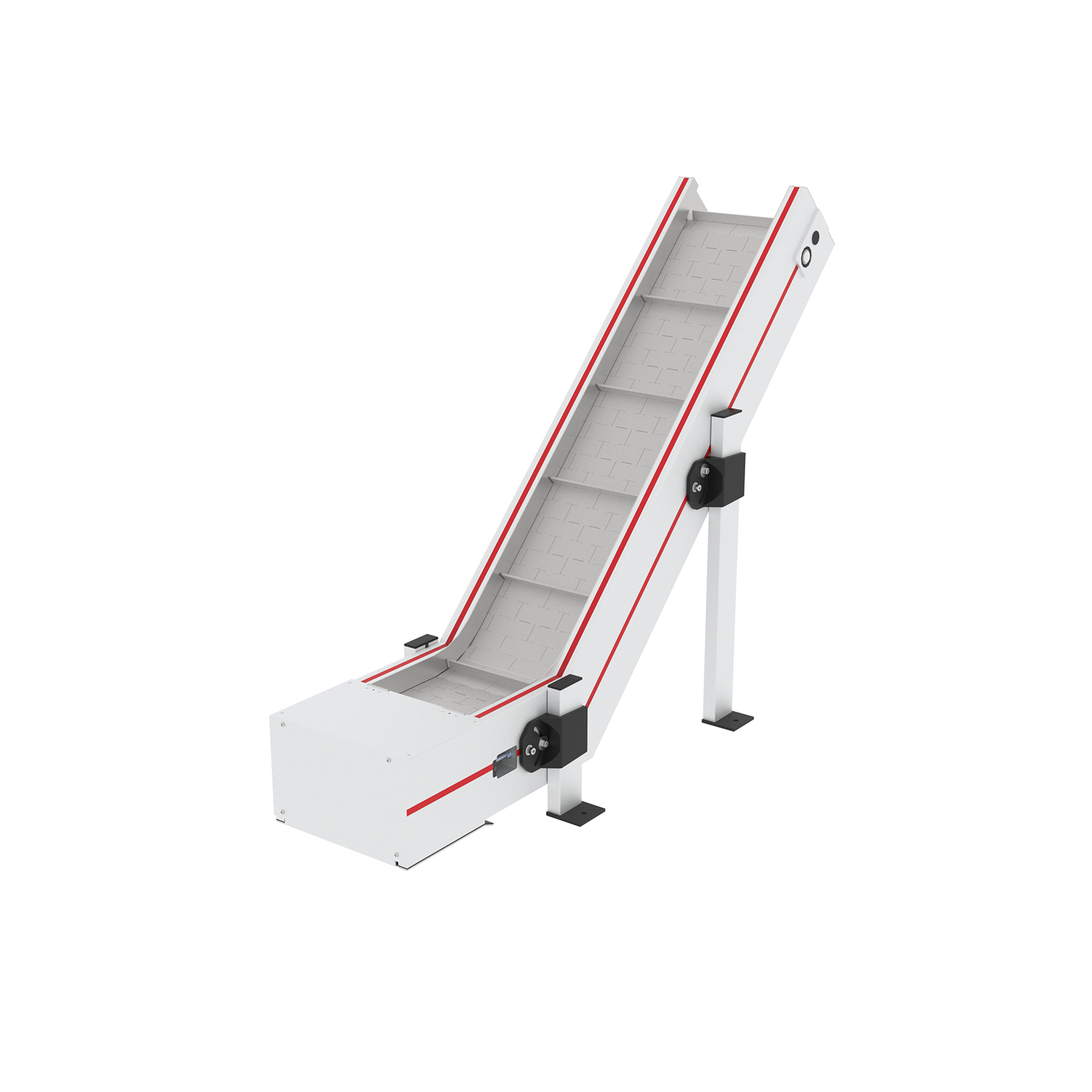

The negatively angled Multi-Tech hinge belt conveyors type NVF-AM 140 are assembled from a comprehensive modular system and can thus be individually and optimally adapted to the respective application.

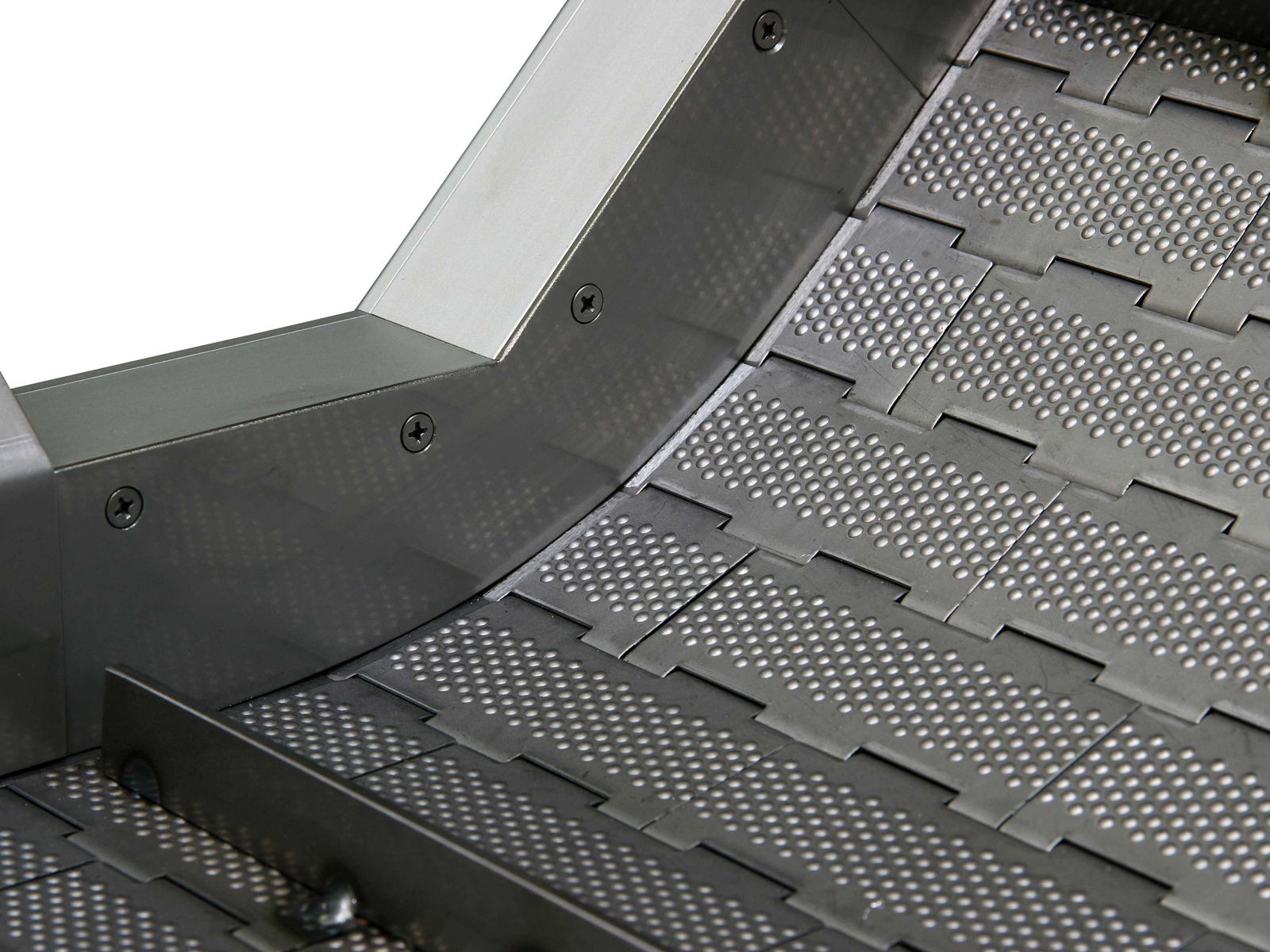

These robust hinge plate conveyors are often used as discharge conveyors from low machine shafts. The flat belt section is usually very low and the steep belt section typically not very long. In these applications, limited installation space is typically available, and obstructions in the machine bed often necessitate that the base frame supports be individually mountable on the conveyor belt and adjustable in height and tilt. The conveyor belt frame consists of specially developed aluminum profiles from MTF Technik, optimized for mounting the hinge plates. A great deal of expertise is evident in the details to ensure optimal functionality and stability. The robust profiles each feature a groove on the side and below the conveyor belt, which can be used to attach base frames, drive units, sensors, and other components. This avoids costly drilling or welding work and ensures maximum flexibility. The feed angle is optionally 30°, 45°, 60°, or 75°. The NVF-AM 140 hinge plate belts have a pitch of 38.1 mm and are available in either steel or stainless steel. The surface of the individual hinge plate elements is smooth as standard, but can also be textured, perforated, slotted, or textured and perforated, depending on the application. For optimal sealing of the conveyor belt, the belts are equipped as standard with a moving side flange that runs behind the side cover plates and provides additional sealing. The belts can be fitted with drive lugs in various designs to achieve optimal conveying results. Spring tensioners are integrated into the side profiles to keep the hinge plate belt under sufficient tension at all times, thus reducing adjustment and maintenance requirements. The Multi-Tech hinge belt conveyors of type NVF-AM 140 are equipped as standard with powerful flange drives, which can be adapted to the respective application with different motor outputs, gear ratios, and controls. The support task will be adapted.
