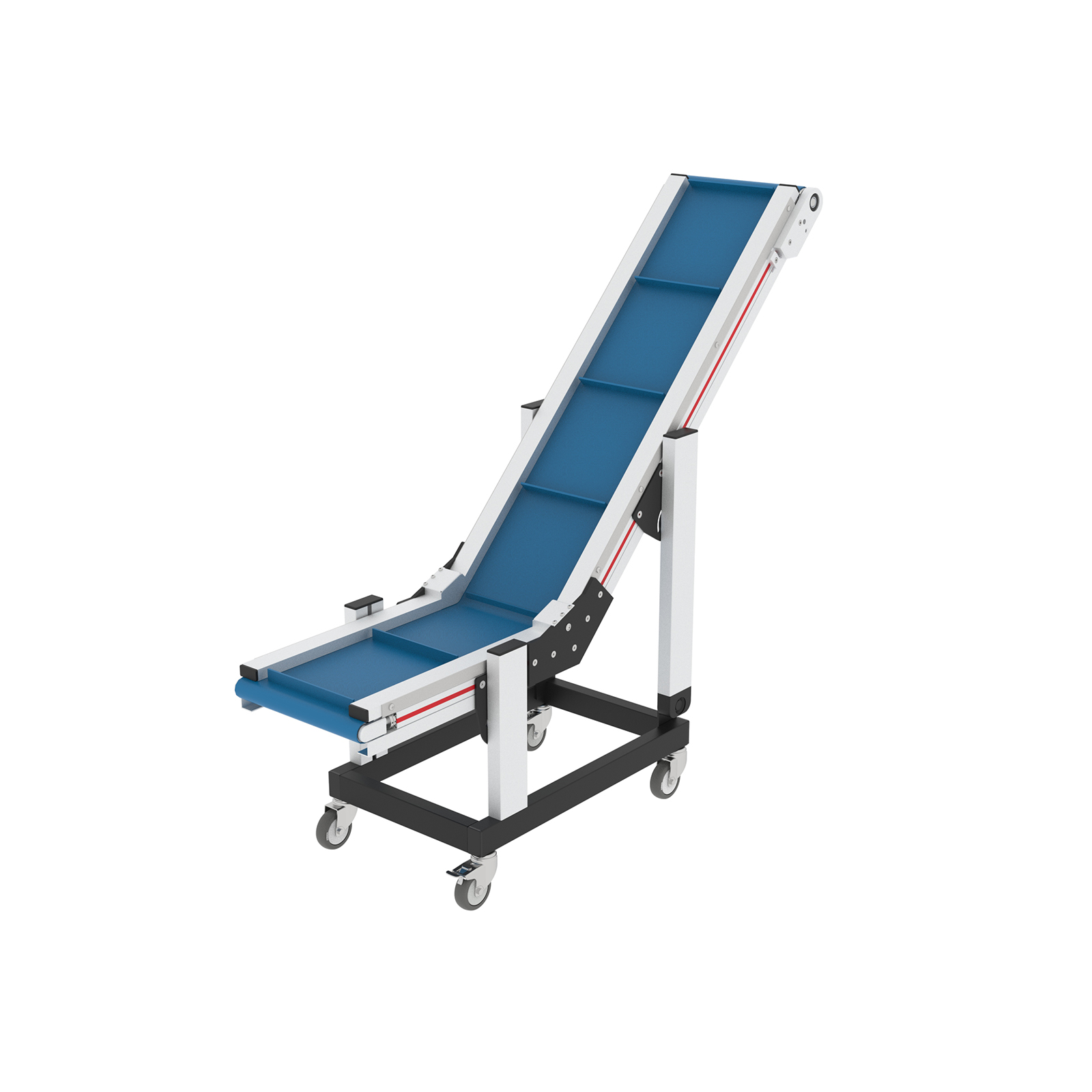

Wherever conveyed material needs to be transported from very low loading areas and then conveyed on an upward slope, the MTF I-Tech INL-LD 560 angle conveyors are the perfect solution. The low frame height of only 30 mm allows for the construction of conveyors with a total height of less than 80 mm.

In particular, angled small conveyors with longer steep belt sections or belt widths over 400 mm can be manufactured as type INL-LD 560. The LD 560 base frame consists of a sturdy, welded base frame onto which vertical aluminum supports are mounted. These supports are positioned laterally alongside the conveyor belt. This allows for large height adjustment ranges, which is particularly relevant when the conveyor belt is to be used on different machines with significantly varying feed heights. The multiple supports of the belt frame further stiffen and stabilize the conveyor belt. This is especially noticeable when the feed height is increased. Conveyor belts of this type are often used for the disposal of various production machines in the plastics industry or on packaging machines. A total of seven different conveyor belts made of PVC, PU or polyester material with different surface structures and properties are available for these conveyor belts. In addition to these belts from the MTF standard range, special types can also be fitted if required. The I-Tech INL-LD 560 angle conveyor belts can be equipped with three different drive units, which, in combination with various power outputs, gear ratios, and controls, ensure optimal adaptation to the respective transport task. Building on this basic configuration, the conveyor belts can be functionally expanded with a wide range of accessories. These include, among other things, fans, heaters, ionizers, covers, sensors, chutes, hoods, etc.
