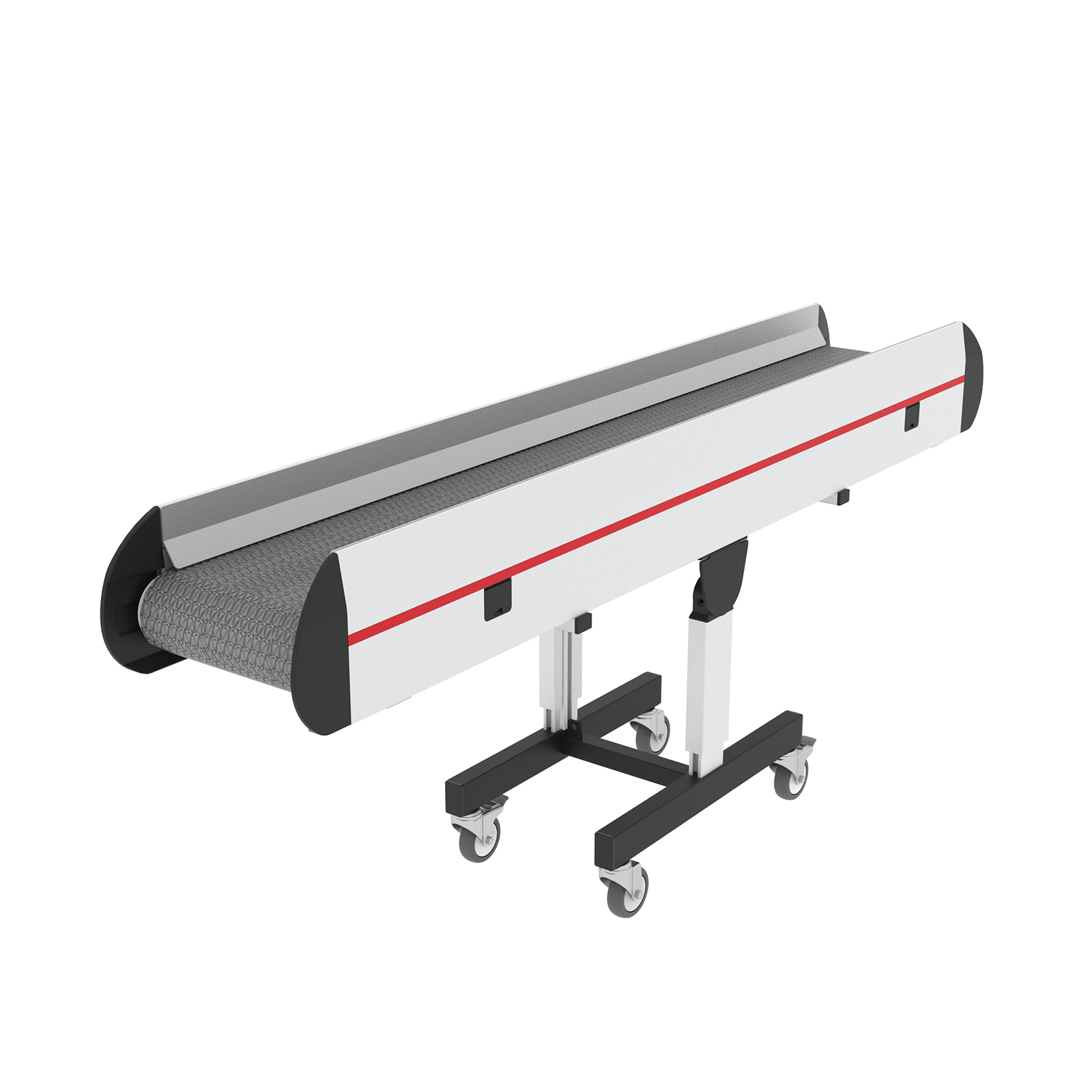

Wire belt conveyor type GS-HE 010
Straight wire mesh conveyor belt with telescopic single stand below the belt body
Wire belt conveyor type GS-HE 010
Straight wire mesh conveyor belt with telescopic single stand below the belt body
Base frame: stepless height adjustment
Incline: Extreme bandwidth gradient possible
Protrusion: no underframe parts protruding upwards or laterally
- Description
- Advantages
- Technical data
- Media
The straight Multi-Tech wire mesh conveyors with a belt length of up to 2,000 mm and a width of up to 500 mm can be equipped with a HE 010 type base frame. In this configuration, they are used, for example, as a small storage conveyor on a robot cell or as a machine discharge conveyor for falling parts.
The base frame consists of a sturdy, welded frame with vertically mounted aluminum profiles that are telescopically extendable and secured by a pivot point in the lower groove of the conveyor profiles. This means that no base frame components protrude upwards, and the entire side groove remains fully accessible for attaching additional elements – e.g., sensors.
available.
The conveyor belt can be continuously adjusted in height and inclination. In special applications, the base even allows a theoretical inclination angle of 90°.
Five profile types with different guide heights for maximum variability
Robust design, engineered for daily industrial use
High-quality materials from renowned suppliers for maximum quality and availability
Telescopic base for stepless height adjustment
No underframe parts protruding upwards or laterally
Extreme tilt angles possible
Feature
Value
Width:
200 mm to 500 mm
length:
700 mm to 2,000 mm
Conveyor speeds:
from 0.7 m/min to 19.1 m/min
Band stress:
8 kg/m [max. 500 kg total load]
Deflection without chain guide:
Ø80 mm
Lateral guiding height:
0 mm, 7 mm, 40 mm, 80 mm, >80 mm with guide plates
Drive types:
external lateral, below, in the belt body, flange motor, drum motor
adjustment:
For horizontal transport and inclines up to 60°
Special dimensions and designs:
upon request
