Standing separator Type MSL 600

Standing screw separator

MTF Technik - Standing separator Type MSL 600

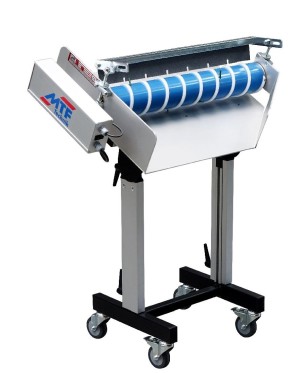

Standing screw separator Type MSL 600 - a flexible assistant for your production


MTF Technik - Standing separator Type MSL 600

Standing screw separator Type MSL 600 - a flexible assistant for your production


The Multi-Separator MSL 600 is a further novelty of the MTF product programme. It can be integrated without difficulty in a broad range of processes because of its variability.

It is especially useful when injection-moulded pieces must be separated from sprue very flexibly at different machines or locations.

Highlights

With the use of the screw separator "MSL / MSR," the larger parts of the items to be separated are moved to the side with the help of the screw. Smaller pieces slide out between the height-adjustable outlet slide and the screw roller.

  • Separator lengths of 600 mm and 800 mm as standard
  • Screws available in a variety of materials with different screw surfaces and heights
  • Simple adjustment of the separation gap with knurled nuts
  • Speed adjustable at 15 levels from 8 to 140 rpm
  • Overload protection prevents piece jams and injuries to operating personnel
  • Low energy use due to efficient planetary gear drive
  • Polyester scraper above the screw prevents accidental skipping of pieces or sprues
  • Adjustable spikes for easier separation of pieces
  • Telescoping base, easily adjustable in height and angle
  • Wheels with locks for stability

Advantages

  • Absolutely maintenance-free separation unit with integrated drum motor

  • Optional constant (80 rpm) or infinitely adjustable (8-80 rpm) screw speed for optimal separation results

  • Screw profile height of 4, 5, 6, 8, 10 or 11 mm available standard

  • Infinite and exceptionally precise adjustment of the separation gap with knurled nuts

  • Polyester scraper over the screw to prevent the parts from skipping

  • Screw roller optionally provided with spikes to ensure an easy separation of the pieces and thus to improve the separation result

  • Consistent design for the highest work safety

  • Base Type HE 010 from the Multi-Tech line for infinitely adjustable height and angle

  • Stable construction and perfect ergonomic design in the proven MTF quality

Product information

MTF Multi-Separator MSL, MSR

Application Examples and Tutorials

Example video: Separation with (comparable) SAL 600 separation attachment - 9 sprues, 72 parts in 11 seconds

Information video: Influence of the product quantity on the separation result using the example of a stand separator type MSL 600

Information video: Influence of spikes and higher rotational speed on the separation result of a separator
