Separating Drum Type I 307 B Special

Hedgehog Drum

MTF Technik - Separating Drum Type I 307 B Special

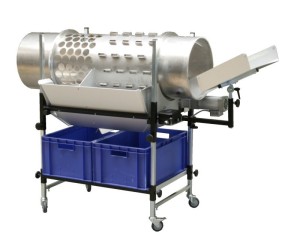

Combination of hedgehog and perforated drum Type I 307 B Sonder for 2-stage separation; i.e., three different pieces can be separated from each other.


MTF Technik - Separating Drum Type I 307 B Special

Combination of hedgehog and perforated drum Type I 307 B Sonder for 2-stage separation; i.e., three different pieces can be separated from each other.


This perforated separating drum is a novelty in the MTF separation program. The "hedgehog drum" is especially suited for the separation of parts with very complex differing piece geometries. The sleeve pipes attached to the outside of the drum cage ("hedgehog quills") have the task of preventing the larger pieces from wriggling through the holes or any pieces from getting caught in the holes.

Highlights

If multiple different pieces are produced in the manufacturing process, the separation process must accordingly have multiple steps. This can be achieved by repeated separations - e.g., in one central-adjustment separation drum with multiple settings - or in multi-stage separation drums.

  • Combination of different hole and sleeve geometries depending on the task
  • Individually designed length and composition of the individual separation zones
  • Fall-out shafts separated zone-wise under the drum cage
  • Container pick-ups can be integrated in the base
  • Different lengths, diameters and materials available

Advantages

  • Optimal separating results even for very complex piece geometries: the "hedgehog quills" prevent the pieces from getting hooked

  • Height and tilt of the drum simply and infinitely adjustable

  • Stable double-column base with the greatest possible space for attaching collection containers under the drum cage

  • High-quality, high-performance and high-torque planetary gear motors for constant or infinitely adjustable drum speeds

  • Swivel input slide with cushioned polyamide coating

  • Covering and function panels of anodized aluminium or galvanized steel (V2A by request)

  • Easy interchangeability of the drum cages

Product Information

Perforated Drums

Inquiry Form

Hedgehog Drum Type I 30xx B


Product Details

MTF Technik - Separating Drum Type I 307 B Special

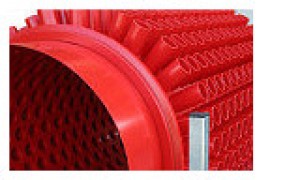

The sleeve pipes or "hedgehog quills" revent the larger pieces from wandering hrough the holes or any pieces from etting caught in the holes.
