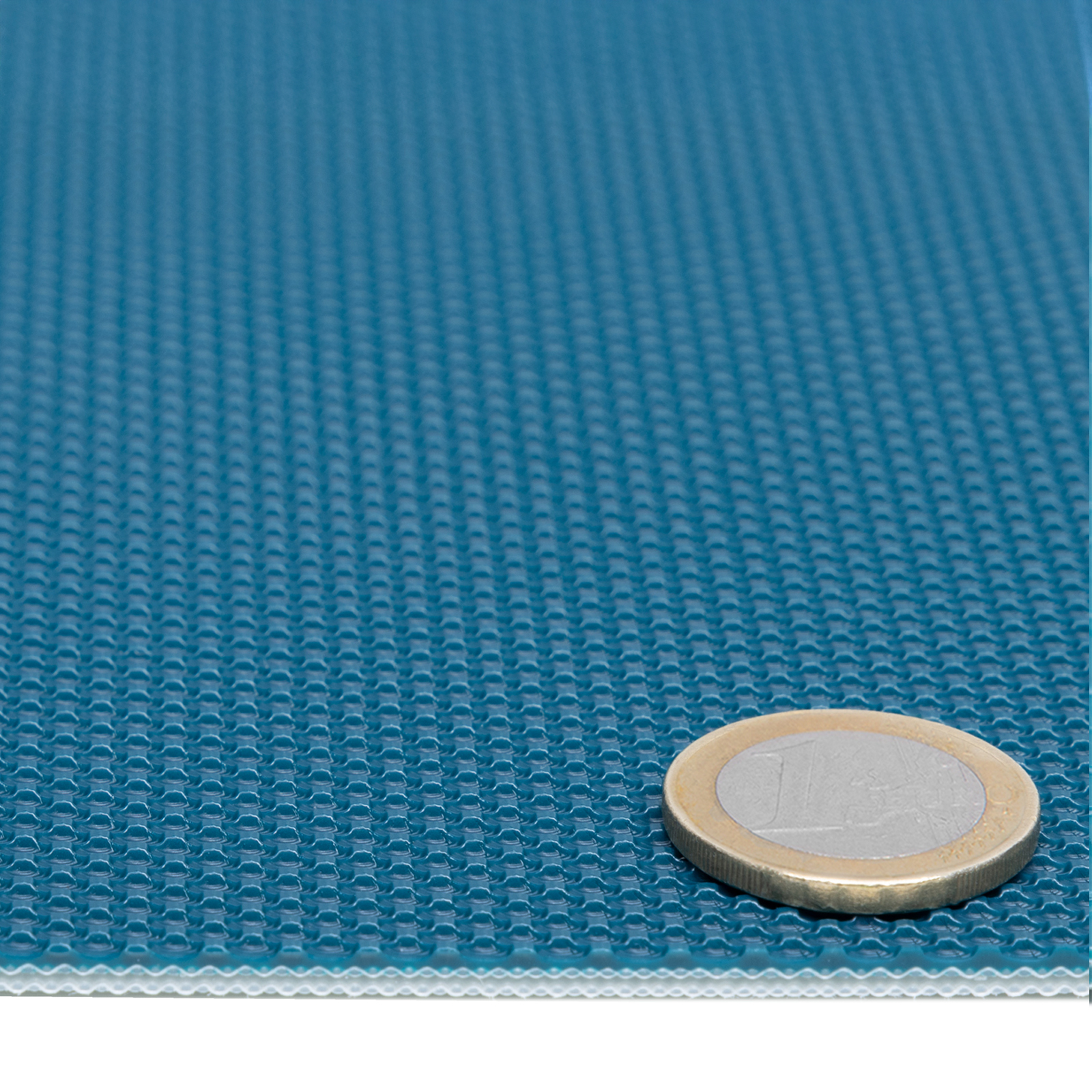

Belt no. 30
Structured PU conveyor belt, robust and suitable for sticky and adhesive products.
Belt no. 30
Structured PU conveyor belt, robust and suitable for sticky and adhesive products.
Material: PU
Temperature resistance: -15°C to +80°C
FDA/EU compliance: Yes
- Description
- Advantages
- Technical data
Due to its coarse weave structure, this petrol-colored PU conveyor belt is particularly durable (like No. 20 in white). It is used in metal processing/stamping industries, for handling oily, sticky products. It is also suitable for wide angled conveyor belts.
The honeycomb-like surface structure prevents parts from sticking together.
EU/FDA compliant belt suitable for cleanroom applications or transport of unpackaged food
Excellent lateral stability for use on wide angled conveyor belts
Durable material for use in metal processing
Embossed surface also possible with drive lugs
Abrasion-resistant, non-stick
Feature
Value
Material on the carrying side:
PU
Temperature resistance:
-15°C to +80°C
Total thickness:
approx. 2.7 mm
FDA/EU compliance:
Yes
Antistatic properties:
Yes
Suitability for metal detectors:
Yes
Oil and grease resistance:
Yes
Surface hardness:
approx. 92° Shore A
Maximum width for angled conveyor belts:
750 mm
Minimum pulley diameter:
40 mm
