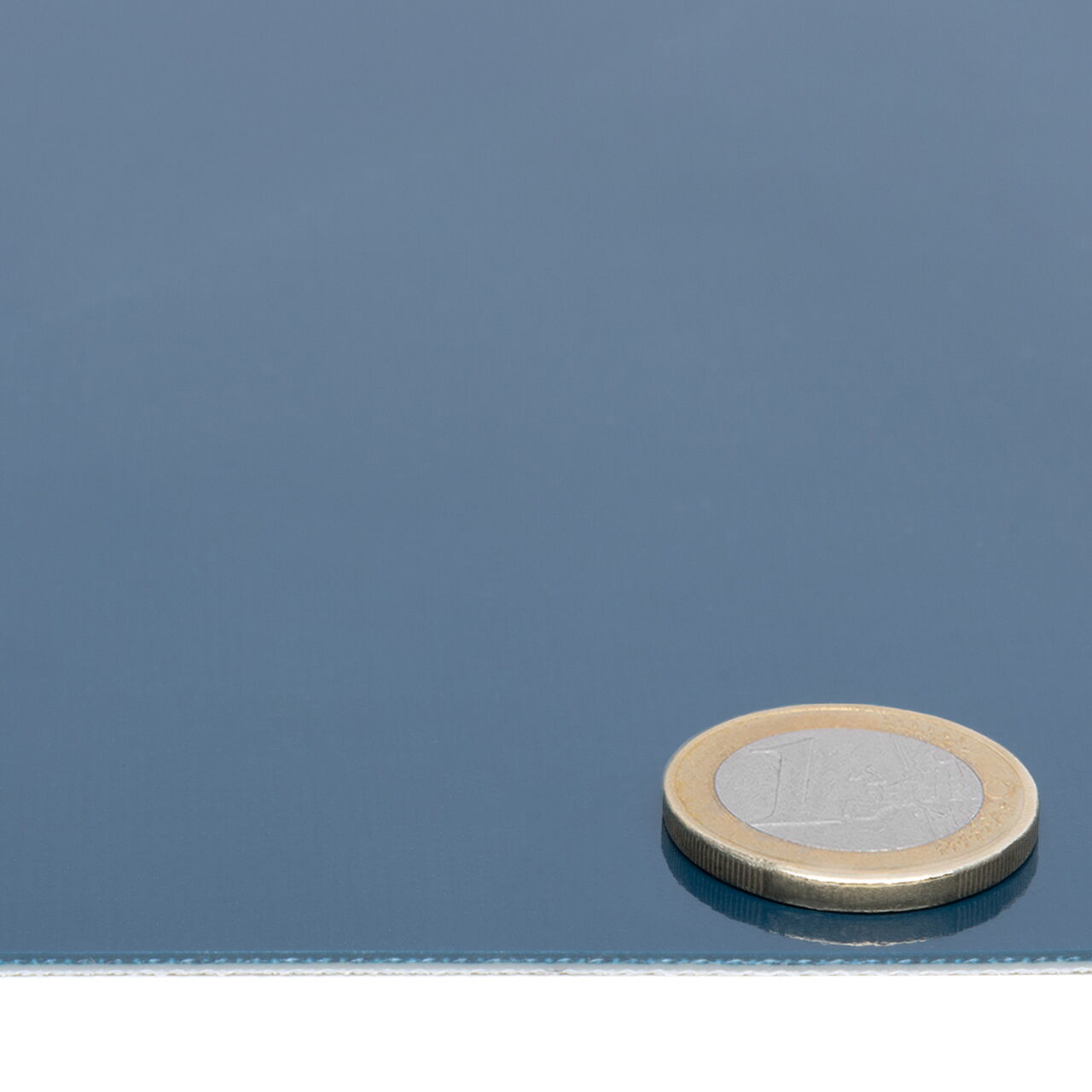

Belt no. GK 3
All-rounder PVC conveyor belt for belt curves, suitable for many applications
Belt no. GK 3
All-rounder PVC conveyor belt for belt curves, suitable for many applications
Material: PVC
Temperature resistance: -10°C to +70°C
FDA/EU compliance: no
- Description
- Advantages
- Technical data
This flexible conveyor belt is used as standard for curved belts.
Standard PVC conveyor belt for belt curves
Flexible conveyor belt for small deflection pulley radii/knife edges up to Ø22mm
Laterally flexible conveyor belt for belt curves
#VALUE! (Function GOOGLETRANSLATE parameter 1 value should be non-empty.)
#VALUE! (Function GOOGLETRANSLATE parameter 1 value should be non-empty.)
#VALUE! (Function GOOGLETRANSLATE parameter 1 value should be non-empty.)
Feature
Value
Material on the carrying side:
PVC
Temperature resistance:
-10°C to +70°C
Total thickness:
approx. 2.0 mm
FDA/EU compliance:
no
Antistatic properties:
Yes
Suitability for metal detectors:
-
Oil and grease resistance:
conditional
Surface hardness:
approx. 75° Shore A
Suitability for belt curves:
Yes
Minimum pulley diameter:
24 mm
Es sind keine Medien vorhanden.
Downloads
