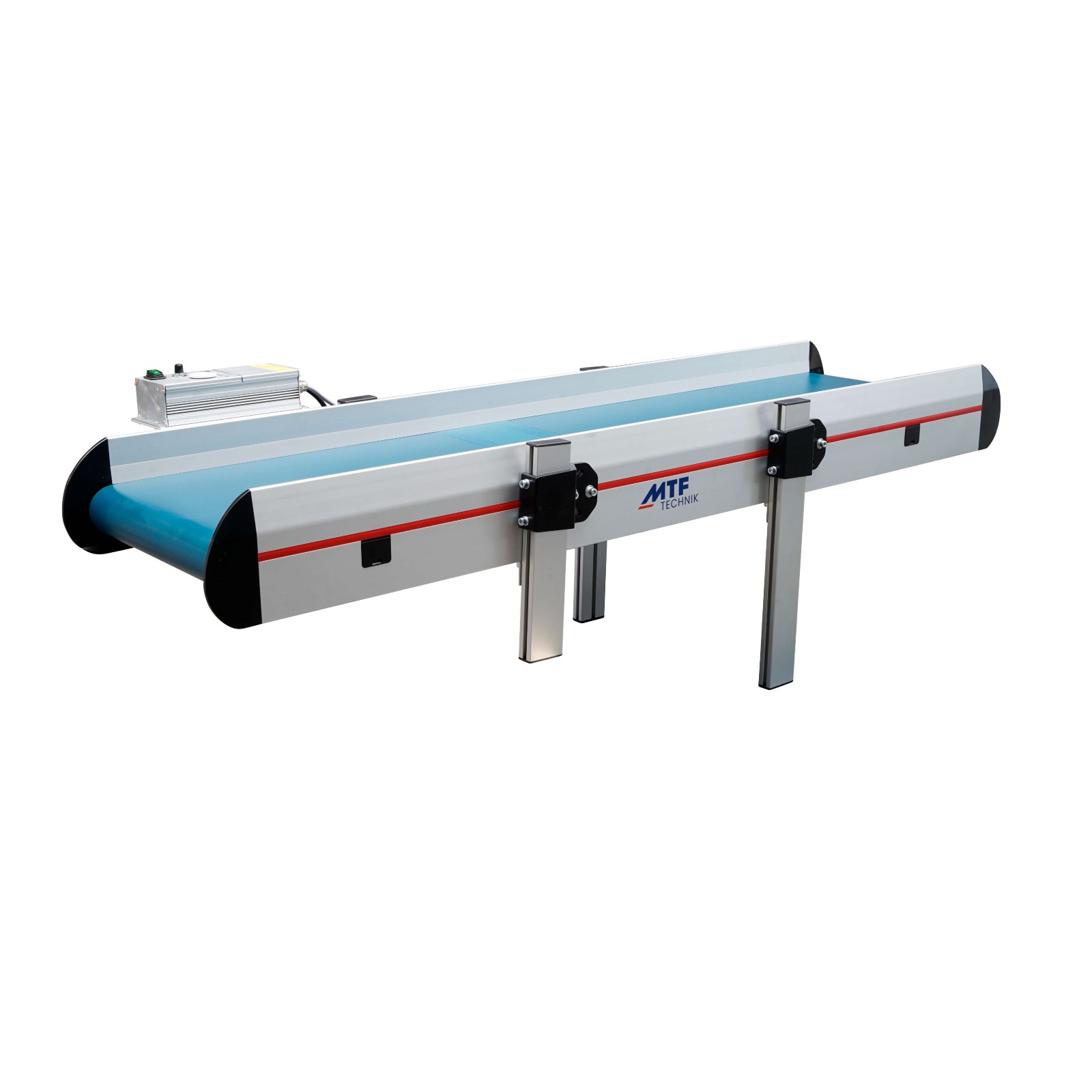

Straight small conveyor belt GL-AM 140, serial no. 59202
Straight conveyor belt, stationary
Straight small conveyor belt GL-AM 140, serial no. 59202
Straight conveyor belt, stationary
Base frame: stationary
conveyor belt: PU sleek, teal
drive unit: Side-mounted worm gear motor with continuously variable belt speed
- Description
- Advantages
- Technical data
This straight conveyor belt was used for demonstration purposes at a trade fair and is in mint condition.
Conveyor belts serviced by the manufacturer
Delivery from stock
Attractive prices for used conveyor belts
short delivery times
fast availability
Conveyor belts tested by the manufacturer
Feature
Value
dimensions:
Length: 1.750 mm
Nominal width: 500 mm
Usable width: 455mm
Guide profile height: 80 mm
belt type:
MTF No. 14
Material: PU, sleek, teal
Temperature resistance: -15°C to +80°C
antistatic
Oil and grease resistant
Water resistant
FDA approved
drive unit:
Type: AS
Worm gear motor mounted on the side of the belt body with continuously variable belt speed
Voltage: 230V
Frequency: 50Hz
Power: 180W
Belt speed: 1.4 - 6.9 m/min
Control: Vector KR
```
base frame:
Type: AM 140
Version: moveable
Serial No.: 59202
Ident. No.: 451481
Year of Manufacture: 2025
