Base frame type LD 020

Sturdy, enclosed steel frame with attached aluminum profiles that are rotatably mounted in the lower and side conveyor belt profiles. Typical application: Universal and stable base frame for heavy angled conveyor belts up to approximately 3,000 mm in length, where the lower flat belt section is very low. Height adjustment: Telescopic, stepless. Incline: -60° to +60°. Overhang: Laterally projecting base frame components. Suitable for Multi-Tech: G, N, P, Z

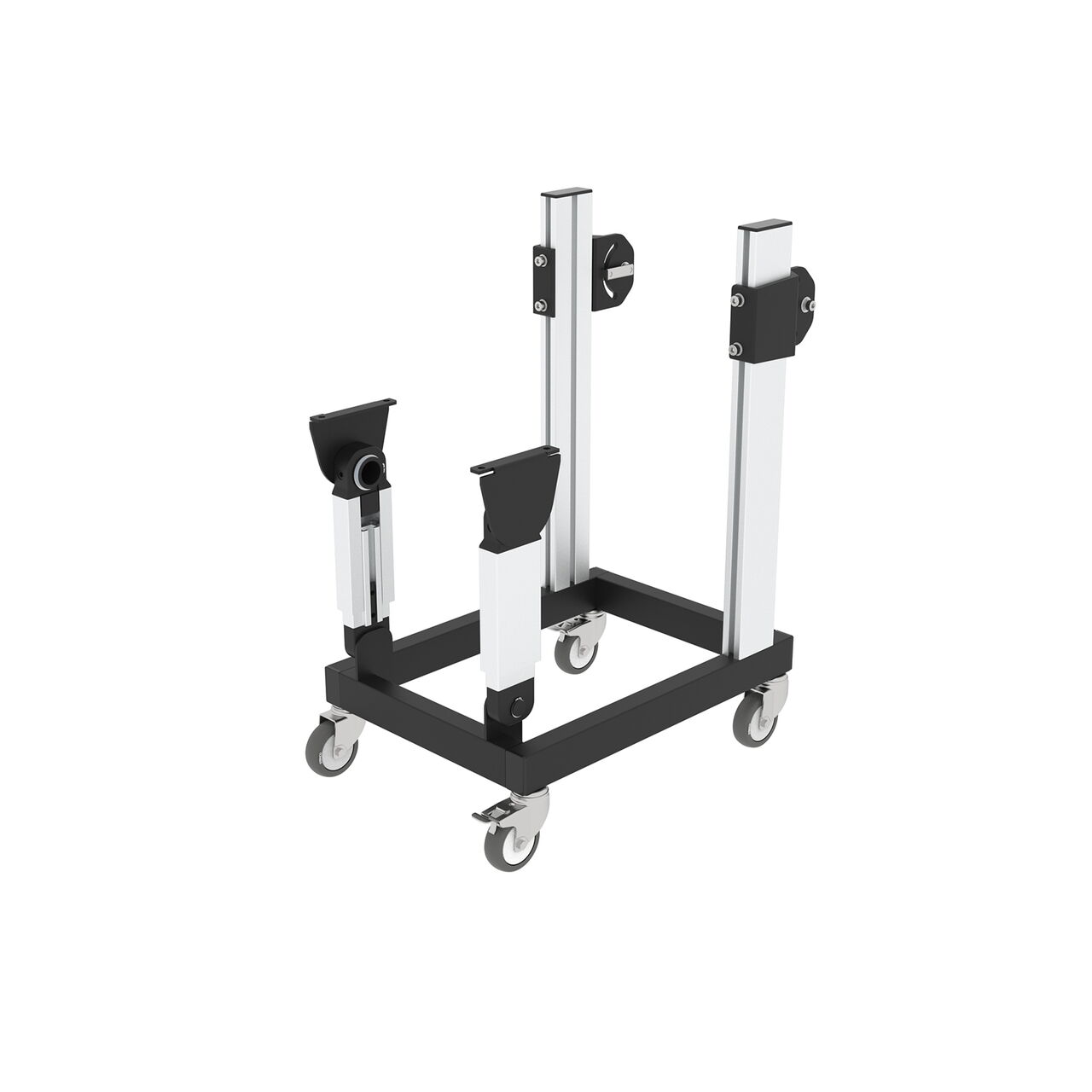

Base frame LD 020

Base frame type LD 020

Sturdy, enclosed steel frame with attached aluminum profiles that are rotatably mounted in the lower and side conveyor belt profiles. Typical application: Universal and stable base frame for heavy angled conveyor belts up to approximately 3,000 mm in length, where the lower flat belt section is very low. Height adjustment: Telescopic, stepless. Incline: -60° to +60°. Overhang: Laterally projecting base frame components. Suitable for Multi-Tech: G, N, P, Z

Request a quote now
Arrange an appointment on site
  • Description
  • Advantages
  • Technical data
  • Media

Robust construction for industrial use

Flexibly adaptable to customer-specific requirements

Space-saving integration into existing systems is possible

Easy cleaning thanks to smooth surfaces

Compatible with various conveyor systems

Construction made from high-quality materials

Feature

Value

There are no media available.
