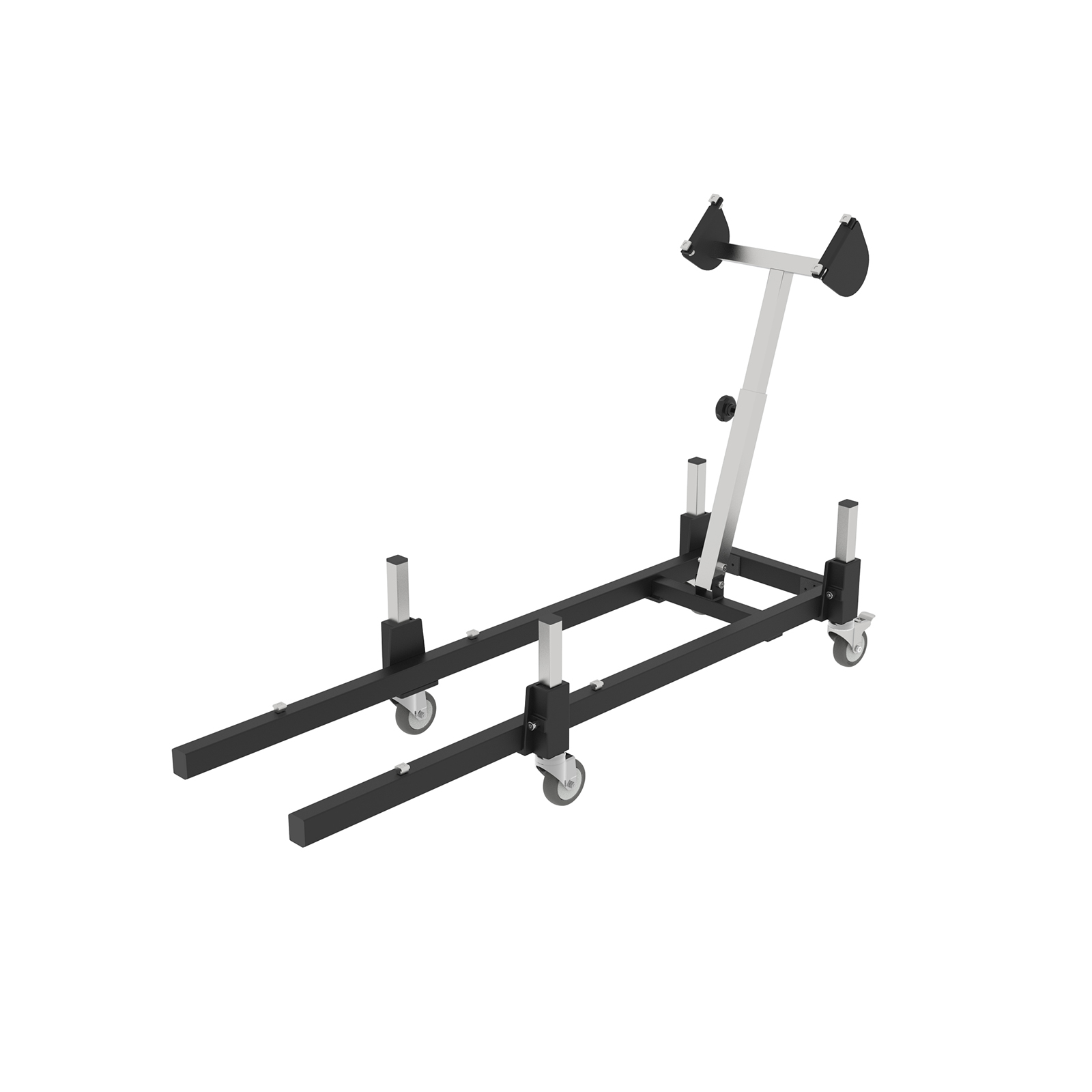

Base frame type TF 110

Base frame with an integrated gas spring for angle conveyor belts type NL or ZL up to a width of approx. 400 mm, whose conveying angle can be conveniently adjusted. The lower flat belt section is mounted on a frame. Typical application: Angle conveyor belts that are regularly adjusted in angle. Height adjustment: Stepless, but only in a low conveying height. Incline: 0° up to 60°
Overhang: laterally protruding underframe parts
Suitable for Multi-Tech: N, Z

Request a quote now

Arrange an appointment on site

Description

Advantages

Technical data

Media

T-shaped center support with integrated gas spring, skids with attached wheel modules, T-slots for wheel adjustment

Robust construction for industrial use

Flexibly adaptable to customer-specific requirements

Space-saving integration into existing systems is possible

Easy cleaning thanks to smooth surfaces

Compatible with various conveyor systems

Feature

Value

There are no media available.
