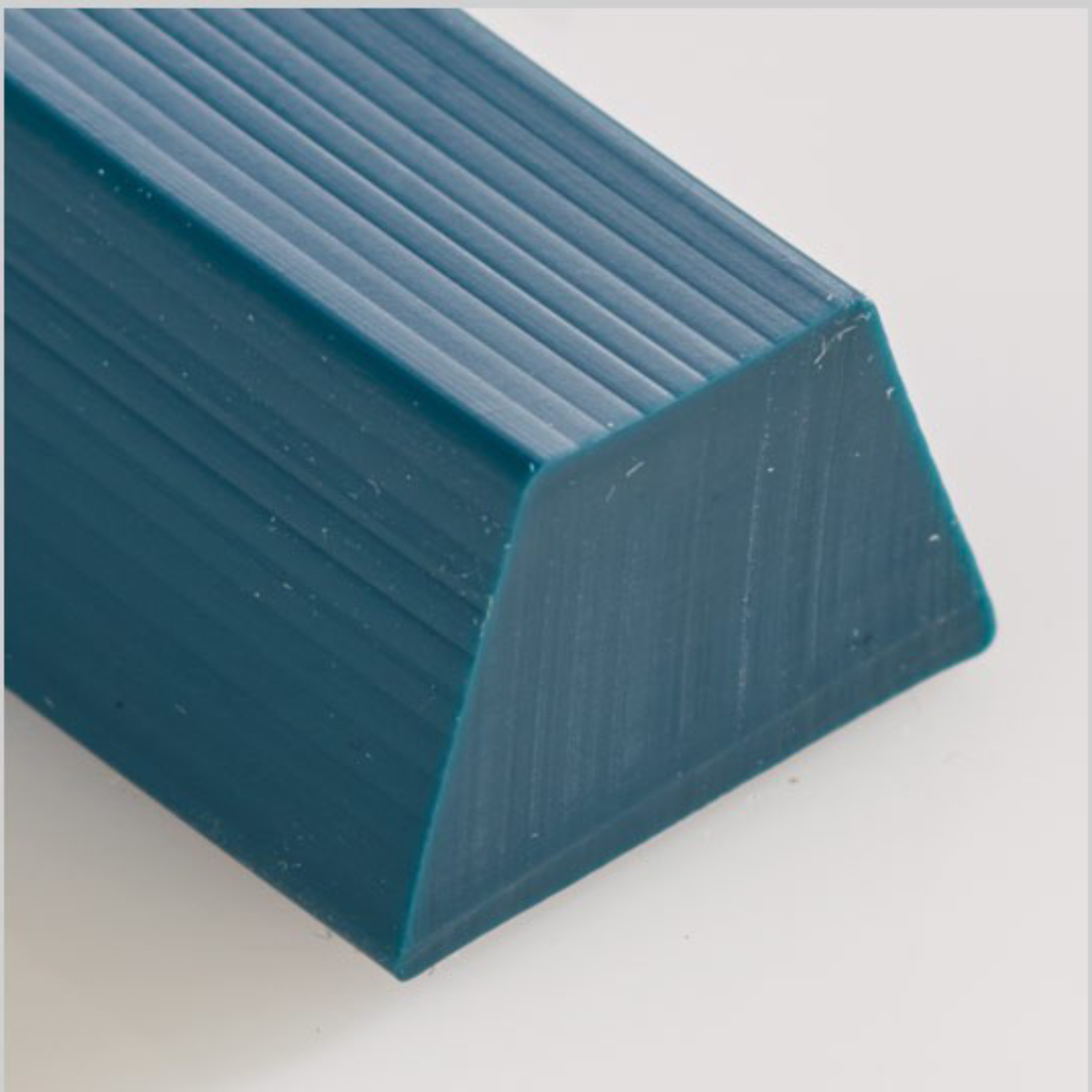

Driving cleat type TR
This trapezoidal conveying cleat is used for conveying small parts.
Driving cleat type TR
This trapezoidal conveying cleat is used for conveying small parts.
form: Trapezoidal shape
material: PVC, PU
Method of manufacture: extruded profile
- Description
- Advantages
- Technical data
- Media
This trapezoidal conveying cleat is used for conveying small parts. Similar to type R, it is used for container transport or as a longitudinal divider.
Feature
Value
form:
Trapezoidal shape
material:
PU / PVC
Foot width x Height:
6x4 / 8x5 / 10x6 / 13x8mm
Method of manufacture:
Extruded profile
Areas of application:
As a drive lug for small parts
As a longitudinal strip on the bearing side
As a wedge strip on the running side
Remarks:
Not every conveyor belt can be equipped with drive cleats. Usable materials depend on the conveyor belt.
There are no media available.
