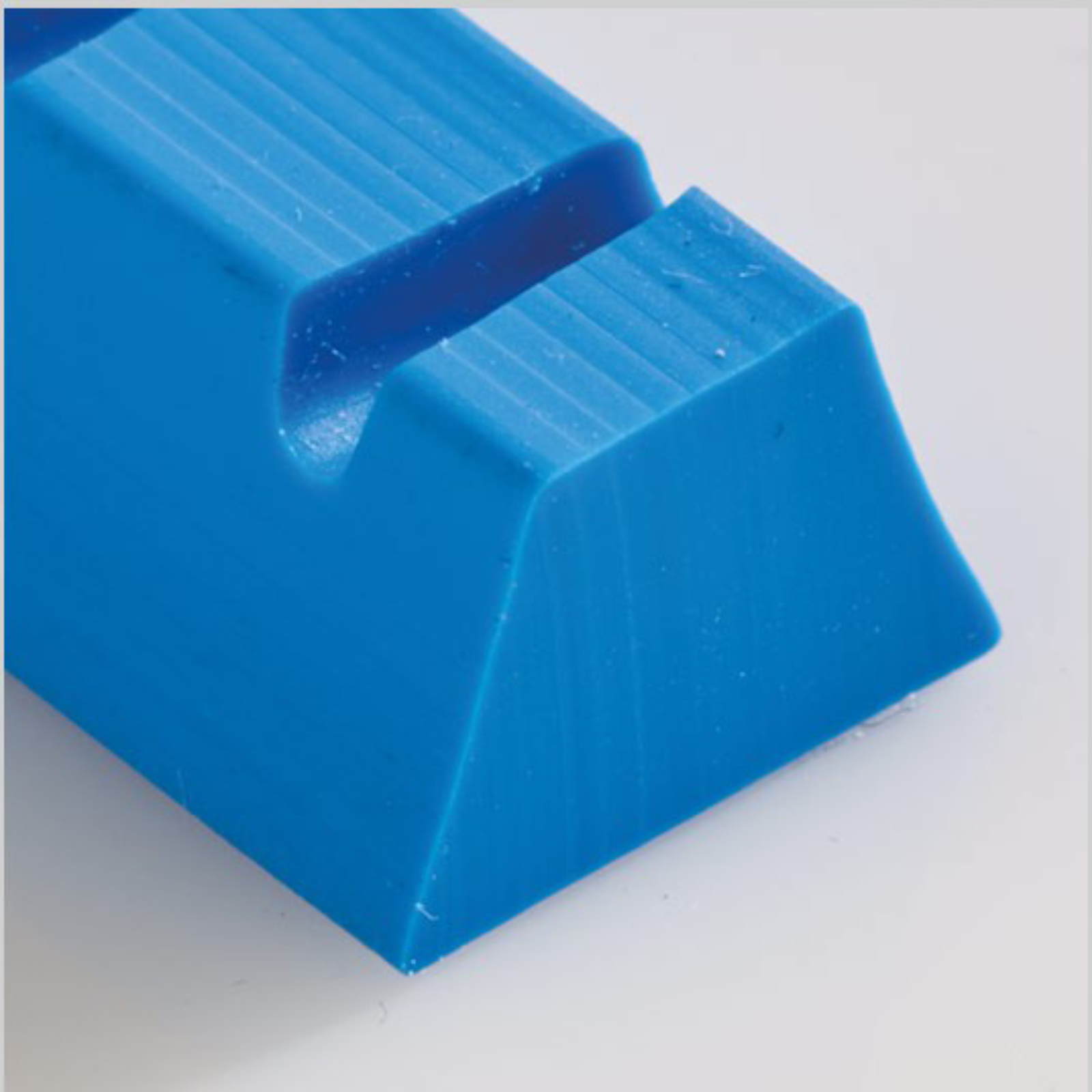

Wedge strips for belt guidance
The wedge-shaped guide strips are used for belt guidance on the underside of the conveyor belt.
Wedge strips for belt guidance
The wedge-shaped guide strips are used for belt guidance on the underside of the conveyor belt.
form: Trapezoidal shape
material: PVC, PU
Method of manufacture: extruded profile
- Description
- Technical data
The wedge-shaped guide strips are used for belt guidance on the underside of the conveyor belt.
Feature
Value
form:
Trapezoidal shape
material:
PU / PVC
Foot width x Height:
6x4 / 8x5 / 10x6 / 13x8mm
surface:
Smooth / notched
Manufacturing method:
Extruded profile
Areas of application:
As a belt guide on the running side (inside of the belt)
Long-term reversing conveyor belts
Short / wide conveyor belts
Special sealing requirements
Remarks:
Not every conveyor belt can be equipped with wedge strips. The material that can be used depends on the type of running mat.
