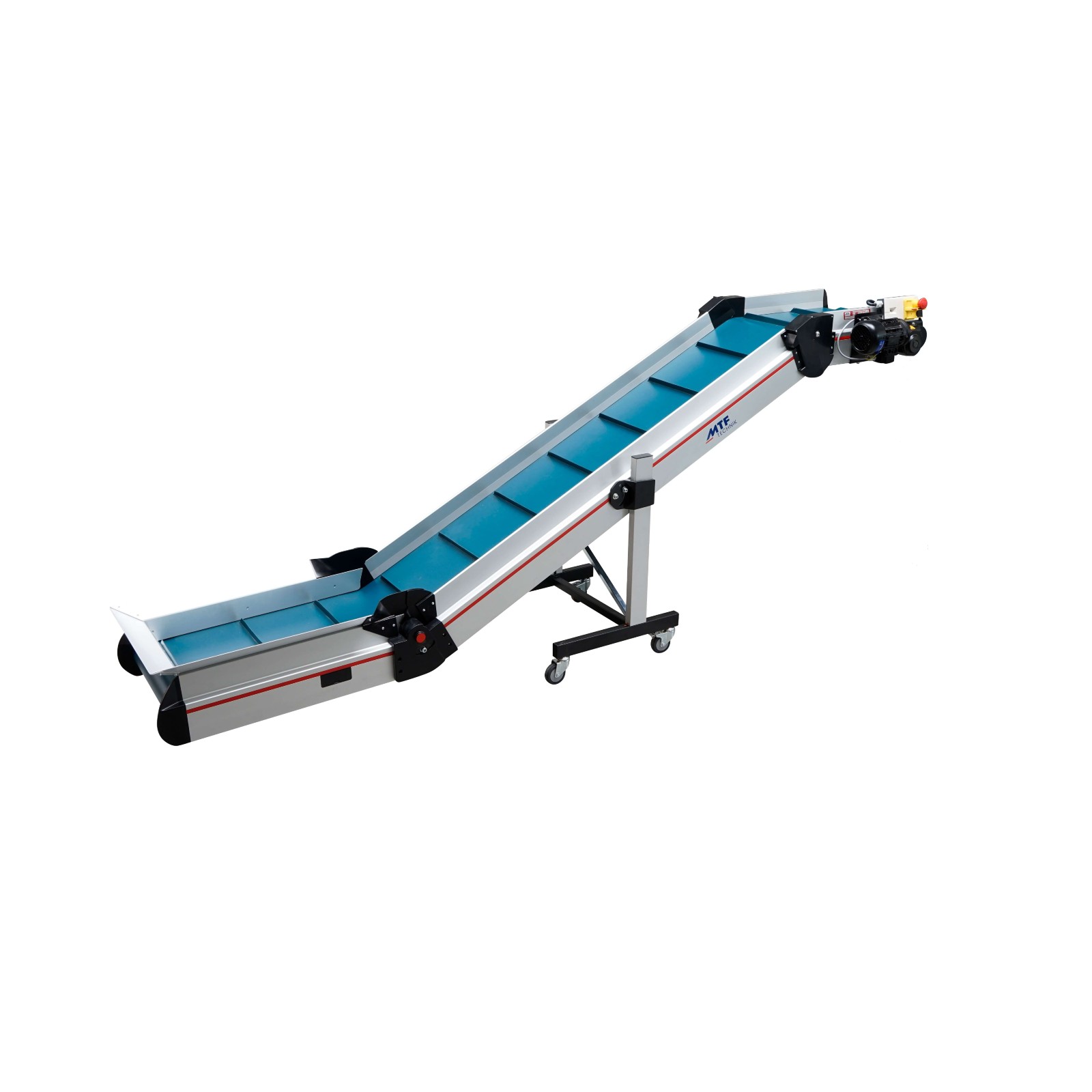

Z-conveyor belt ZL-HE 020, serial no. 59201
Z-shaped conveyor belt in special design
Z-conveyor belt ZL-HE 020, serial no. 59201
Z-shaped conveyor belt in special design
Base frame: mobile
conveyor belt: PU smooth, teal
drive unit: Worm gear motor with continuously variable belt speed
- Description
- Advantages
- Technical data
- Media
This Z-shaped conveyor belt was used for demonstration purposes at a trade fair and is in mint condition.
Conveyor belts serviced by the manufacturer
Delivery from stock
Attractive prices for used conveyor belts
short delivery times
fast availability
Conveyor belts tested by the manufacturer
Feature
Value
dimensions:
Lower flat belt length L1: 700 mm
steep belt length L2: 1.750 mm
Upper flat belt length L3: 500 mm
Nominal belt width: 500 mm
Usable belt width: 400 mm
Side guide height: 80 mm
belt type:
MTF No. 14
Material: PU, sleek, teal
Temperature resistance: -15°C to +80°C
antistatic
Oil and grease resistant
Water resistant
FDA approved
cleats:
Type: T (t-shaped)
Quantity: 25 pieces
Material: PU
Height: 20mm
Length: 380 mm
Spacing: 436 mm
drive unit:
Type AS
Worm gear motor with continuously variable belt speed
Belt speed: 3.1 - 15.7 m/min
Motor power: 180W
Voltage: 230V
Frequency: 50Hz
base frame:
Type: HE 020
Version: Mobile
Serial No.: 59201
Identification No.: 451482
Year of manufacture: 2025
