Carousel storage station in a cleanroom (pharmaceuticals)

Task: Buffering of medical technology plastic parts

Various medical-grade plastic components are to be buffered in bags in a cleanroom.

Different bags with diameters between 260 and 360 mm are used. The lengths of the bags can vary.

The bag holders should be easily adjustable to different diameters.

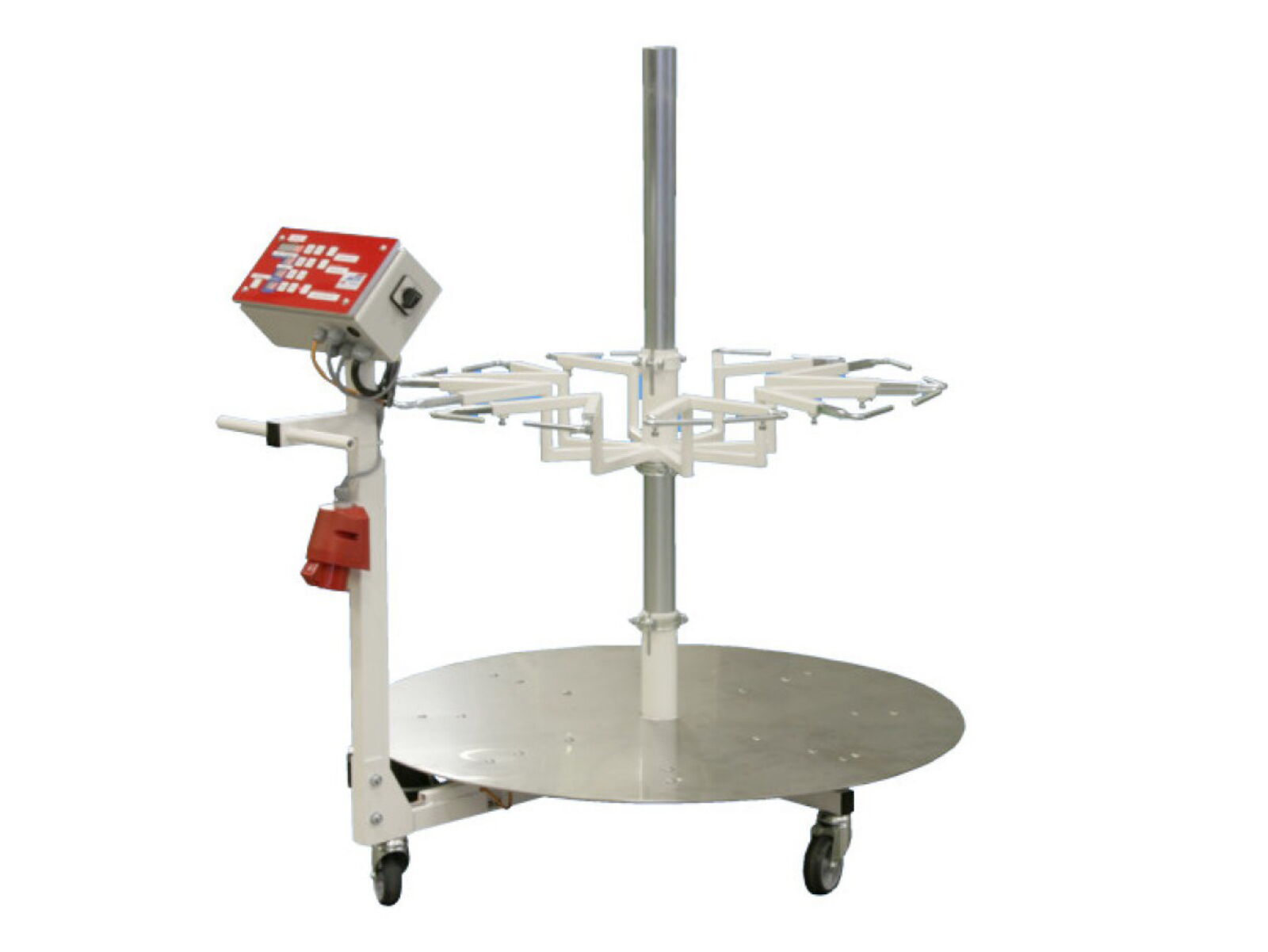

Solution: Depot station with turntable and bag holders in cleanroom version

Carousel with stainless steel turntable Ø1100mm

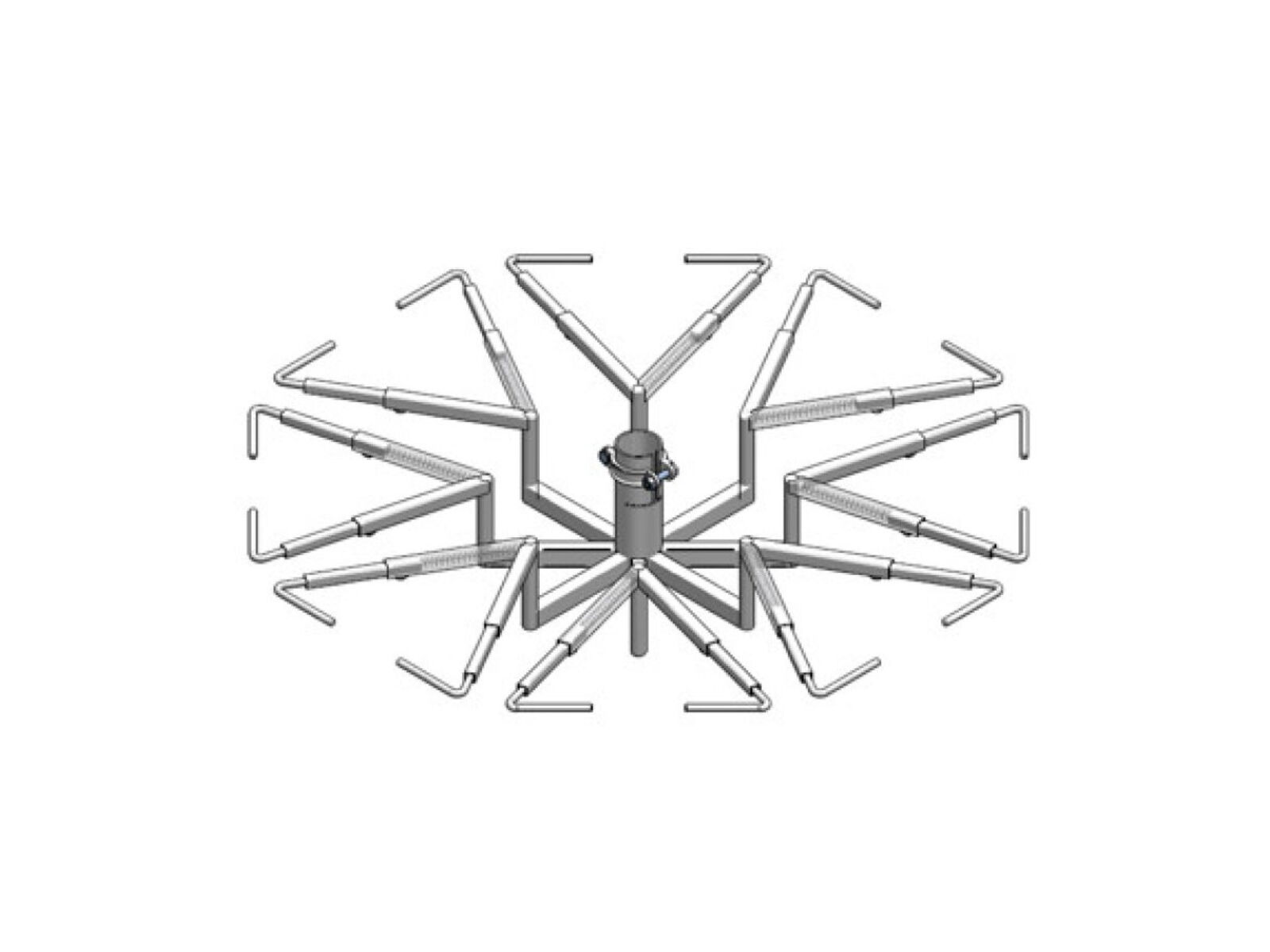

Height-adjustable top with 8 bag holders

Triangular bag holders with spring-loaded inserts for adapting to different bag diameters

Avoid any sharp edges on the bag holders to prevent damage to bags and/or parts.

Counting control unit type ZJ01 including socket for an existing on-site feed device
