Conveyor belt with lane separation for right and left parts

Task: Separate removal of right and left injection-molded parts

In an injection molding machine, right and left parts are produced simultaneously on one mold and are to be transported away separately.

Rejected parts and approach parts should be transported out to the opposite side of the operation.

Good parts should be transported out towards the operator side.

Space is limited, therefore the unit should be built as compactly as possible so that it can be integrated into the machine shaft.

Solution: Straight conveyor belt with lane separation and split hopper

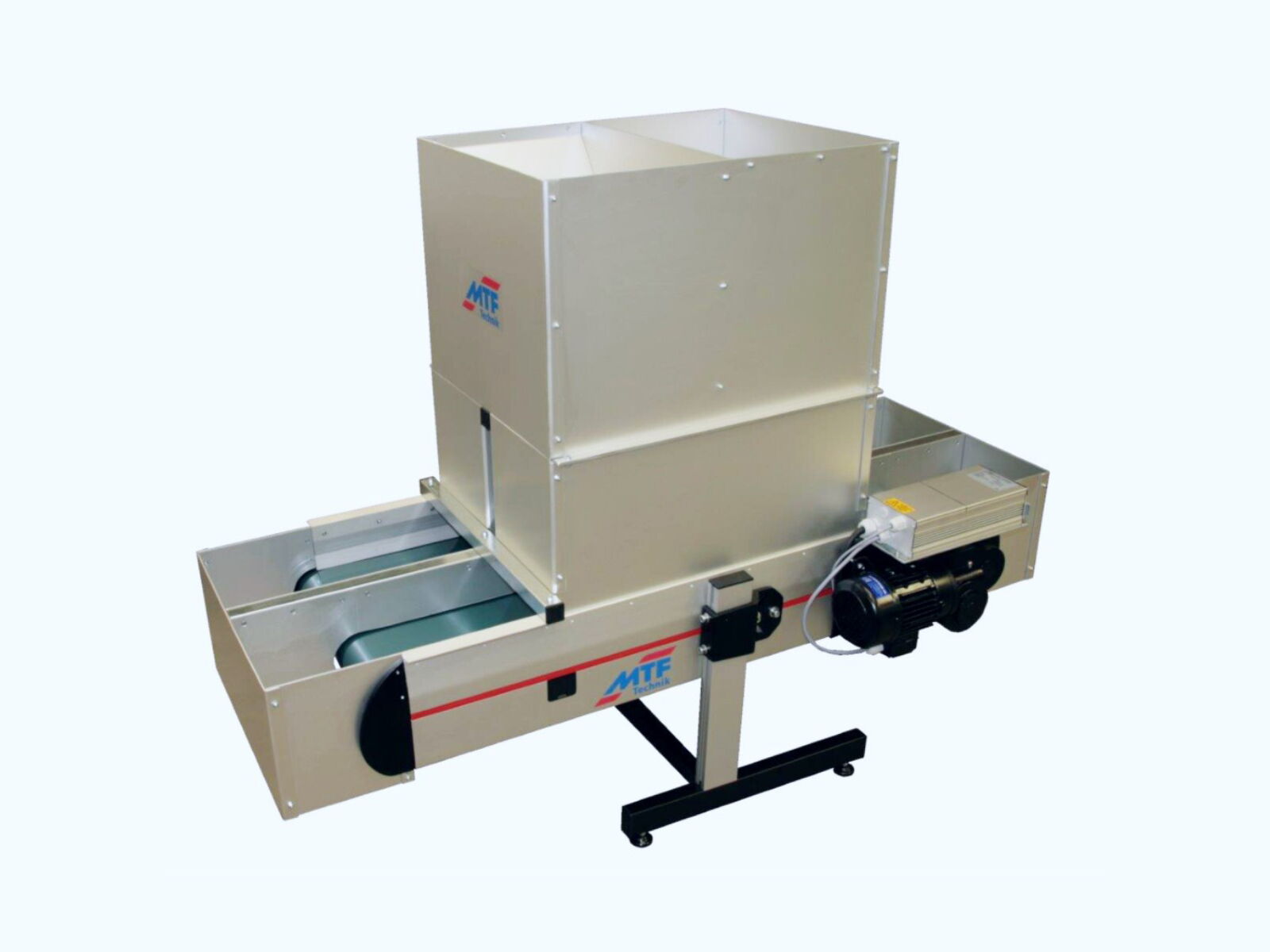

Conveyor belt type GL-HE 020 with lane separation and attached hopper for parts handling

The upper funnel part is pluggable, allowing for easy installation in the machine bed.

Drive with reversible indexing device for good/bad part separation systems
