Floor buffers for plastic parts (cosmetics, packaging)

Task: Cooling and filling of plastic parts into cartons

Plastic parts should be cooled immediately after the injection molding machine and then automatically filled into cartons.

The quantity per carton is to be determined using a weighing module.

The cartons are to be automatically fed in and removed to ensure unmanned operation.

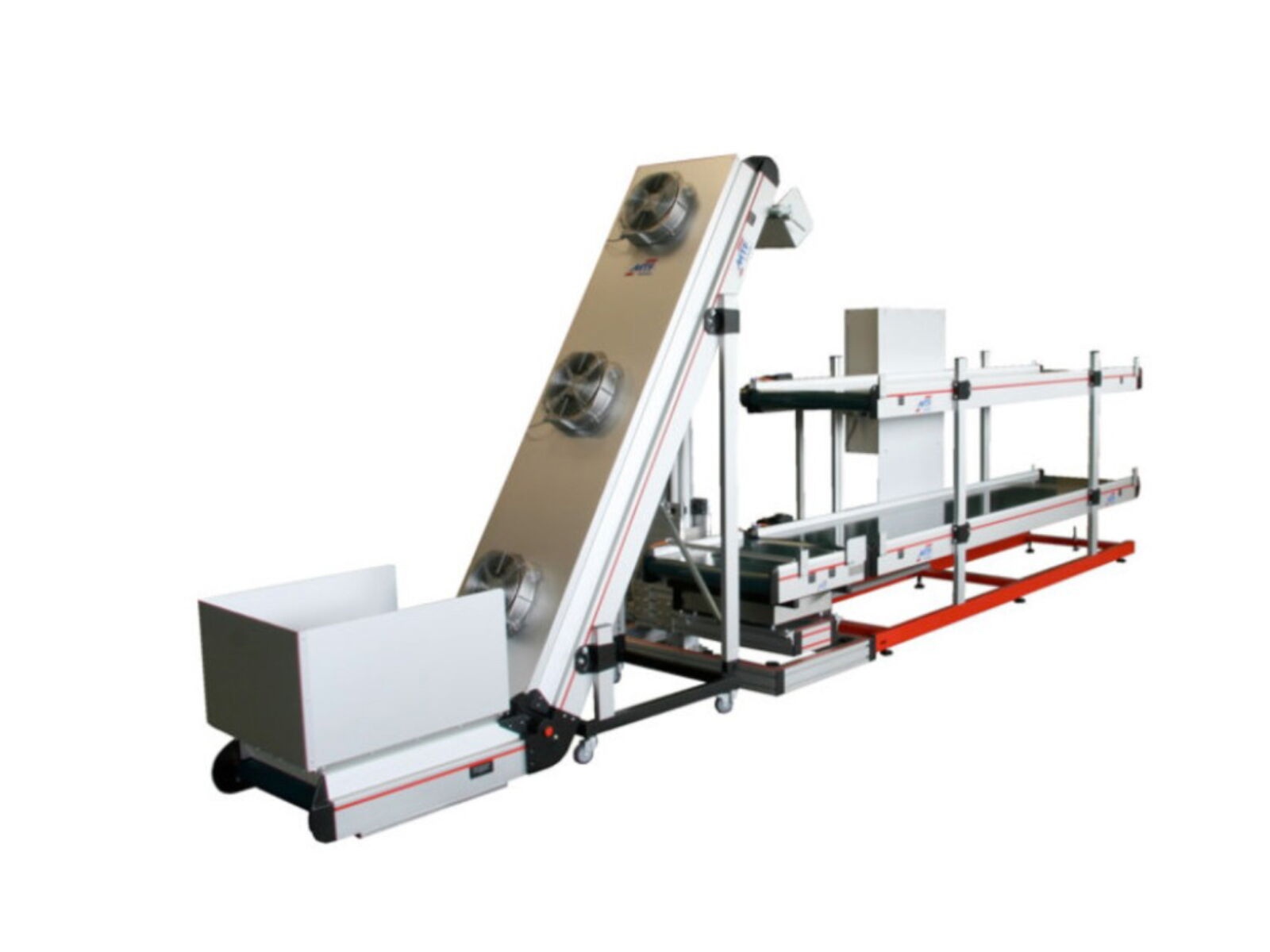

Solution: Conveyor belt with cooling tunnel and buffer conveyor belt with lifting station

NL-LD 120 with special extension hopper and cooling tunnel

The conveyor belt is timed via the overall control system to ensure the longest possible dwell time on the conveyor belt and thus maximum cooling.

Multi-Tech Lift lifting station with two levels and integrated weighing module on the lift boom

Two levels with buffer conveyor belts, one each for empty and filled containers

The entire system, including the load cell, is controlled via a Siemens S7 controller.
