Standard Belt Curves

MTF Technik - Standard Belt Curves

MTF Belt Curves

MTF Technik - Standard Belt Curves

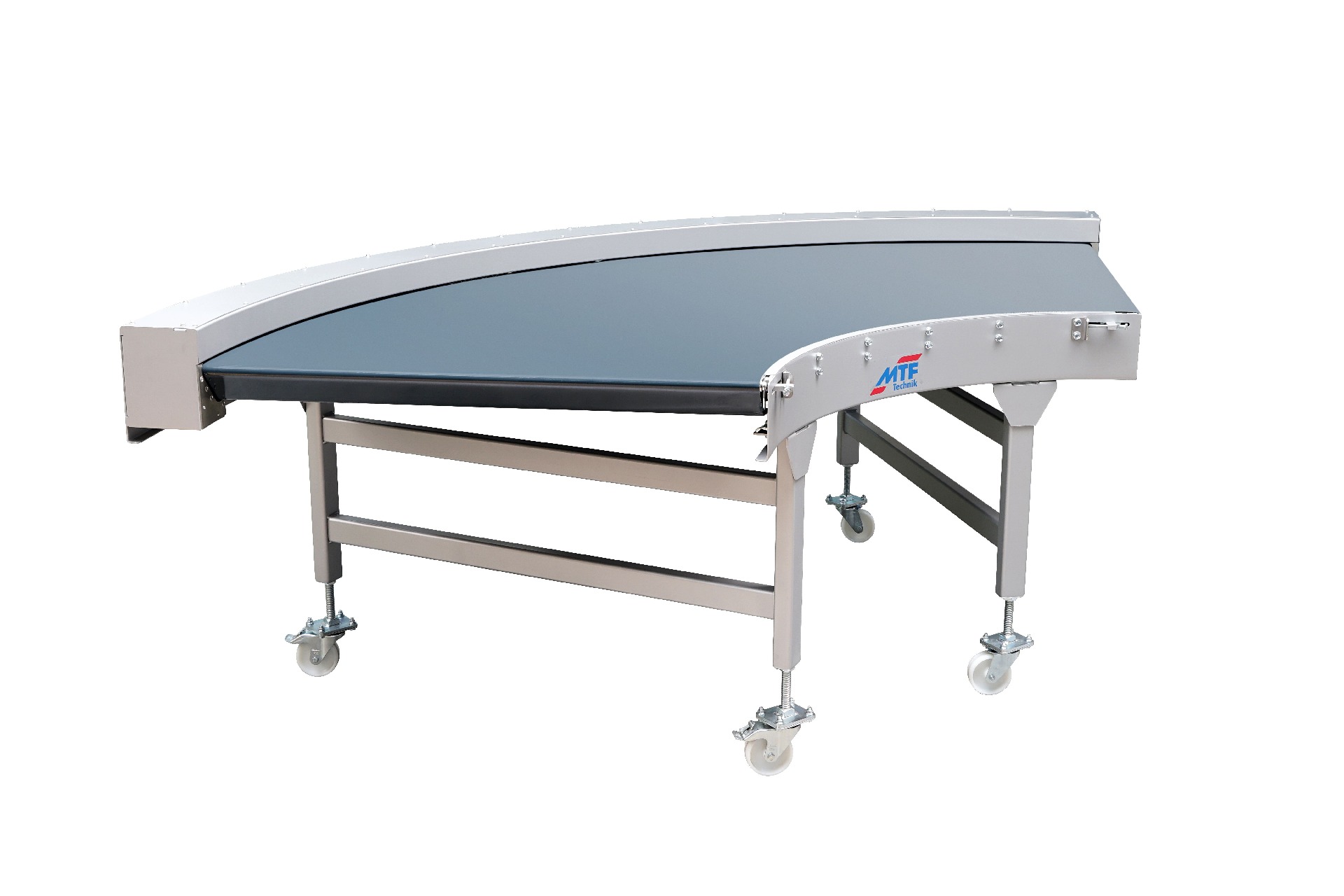

90°- Curved conveyor with 80mm deflection

MTF Technik - Standard Belt Curves

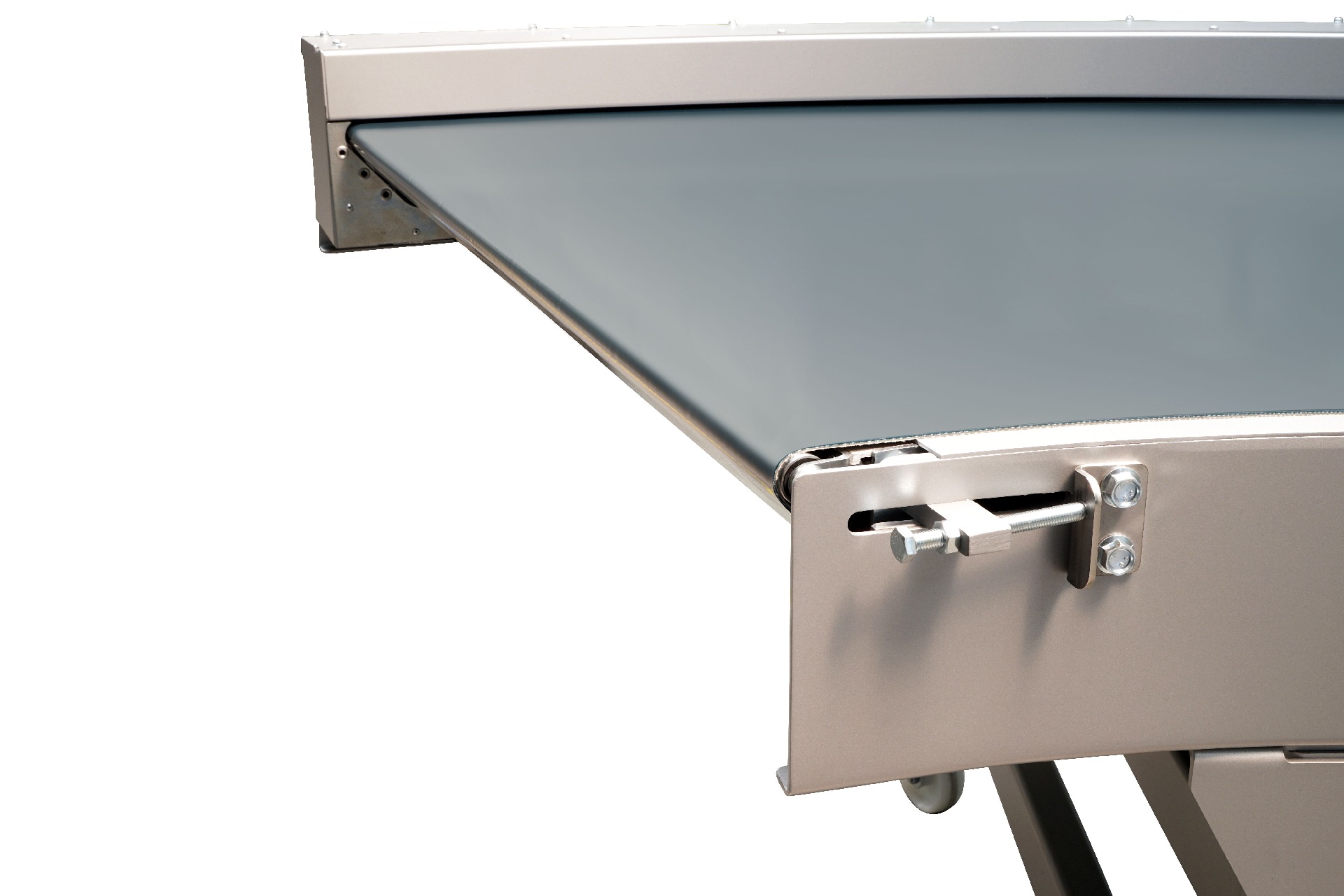

Cylindrical deflection

If the original alignment of parts has to be maintained during the whole conveying process, curved conveyors are an ideal solution. These belt curves cope optimally with every transfer situation. The conveyors are available in various widths, radii and angles and therefore can be perfectly matched with your requirements.
The cylindrical deflections with a minimum diameter of only 8mm allow the transport and transfer of complex goods.

Product Information

Belt Curves


  • Cylindrical deflections with various roller diameters
  • Broad range of standard belt covers and various special belts for any application
  • Extremely stable steel construction, stainless steel as an option
  • Reversible conveying direction as a standard
  • Special designs available on request
  • Transporting angle selectable from 30° to 180° (special angles available)
  • Usable width from 200mm to 1.500mm (special widths available)
  • Inner radii from 200mm to 1.500mm (special radii available)
  • Inner radius of 0mm possible in combination with 180° transport angle
  • Deflection Ø47mm, Ø22mm, Ø16mm or Ø8mm
  • Contiuous operation up to max. 75kg load
  • Cycle operation on request
  • Conveying speed up to 60m/min
  • Reversible conveying direction
  • Various special designs available
