Carousel depot station with container queries

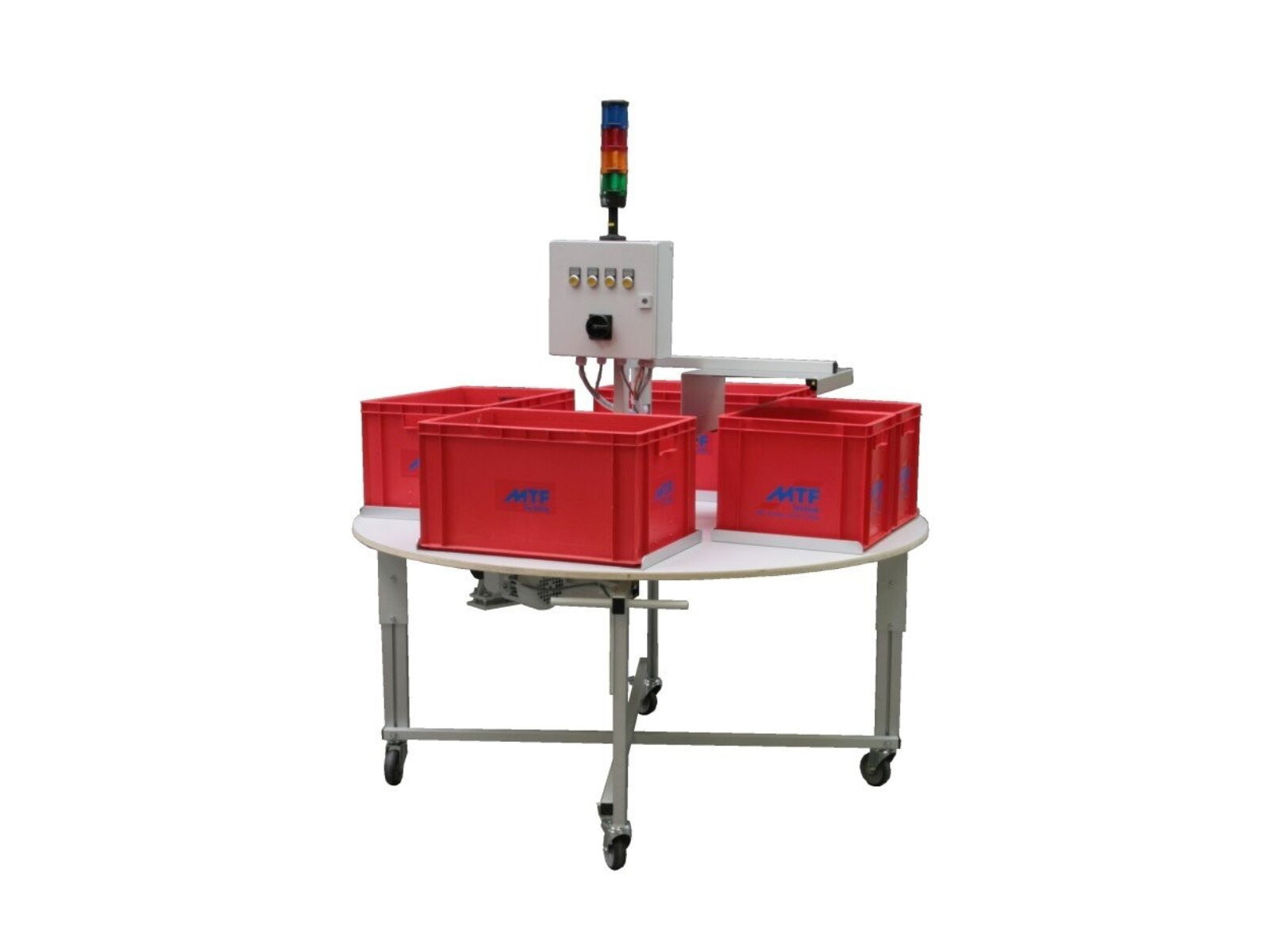

Pick-up system in special design with buttons and sensors for a reliable buffering of filled bags in containers

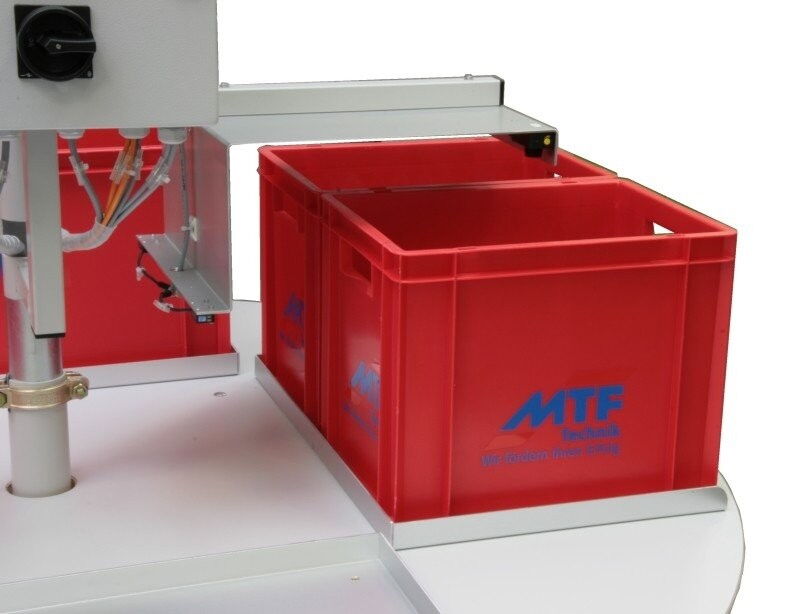

Pick-up system in special design with buttons and sensors for a reliable buffering of filled bags in containers

Task: Reliable buffering of filled bags in containers

Behind a packaging machine, filled bags are to be buffered in containers.

Both 600x400mm and 400x300mm containers should be usable.

Before the filling station, a check should be performed to determine whether one or two containers are available.

Before entering the filling station, a check should be performed to see if the existing containers are empty.

The carousel depot station should have a total of 8 stop positions (one position in a 400x300mm container and two stop positions in a 600x400mm container).

If a container is full, this should be indicated visually.

A container change must be acknowledged.

A container height of 800mm above the floor must be ensured (from the floor to the bottom edge of the container).

Solution: Carousel depot station in special design with buttons and sensors

Buffer carousel in special design with raised underframe

Container presence monitoring using light sensors

Level control using ultrasonic sensors

Terminal box with acknowledgement buttons and signal light

Interface for signal exchange with the on-site PLC control system
