Multi-rounder for the stamping industry

Task: Counting and distributing stamped parts

The stamped parts are to be counted and distributed among 6 containers (400 x 300 x 320mm).

The material is fed in via a conveyor belt.

The last two containers will be monitored using sensors to verify the container change.

The container change must be acknowledged at the control unit.

A three-color signal light is intended to show the operator information about the operating status.

Solution: Stainless steel multi-rounder with control

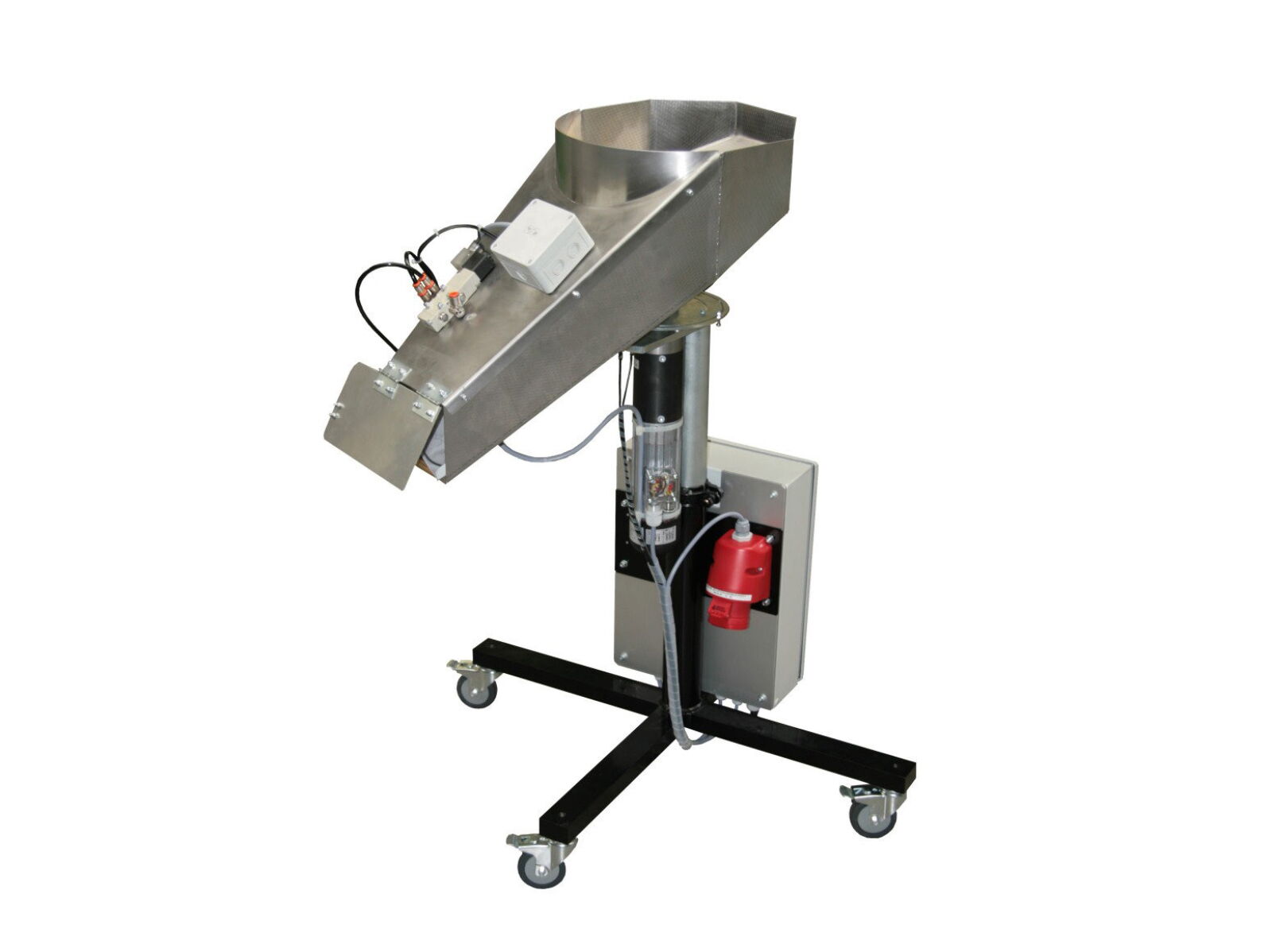

Multi-Rounder Type MR-S1 Special

Stainless steel drop chute with a patterned finish. The top of the chute is covered to prevent parts from ejecting.

Frame with integrated container holders to enable an ergonomic working height.

Siemens S7 controller with signal light and light buttons for container query

The conveyor belt is controlled via a switched electrical outlet.

Signal exchange with the punch press via Harting connectors
