Spider rotary distributor for plastic caps

Task: Transport of closure caps in octabins

Beverage caps are to be transported from an injection molding machine into octabins approximately 2,100 mm high.

The system is designed for filling 5 octabins with the option to expand to 8 later.

The parts should cool down as much as possible on the conveyor belt and must not be damaged or deformed during transport.

A high level of counting accuracy is to be achieved.

Cones of rubble in the octabins should be avoided.

The static charge on the parts should be dissipated as much as possible.

Rejected parts must be collected separately.

Quality shots must be placed in a separate drawer.

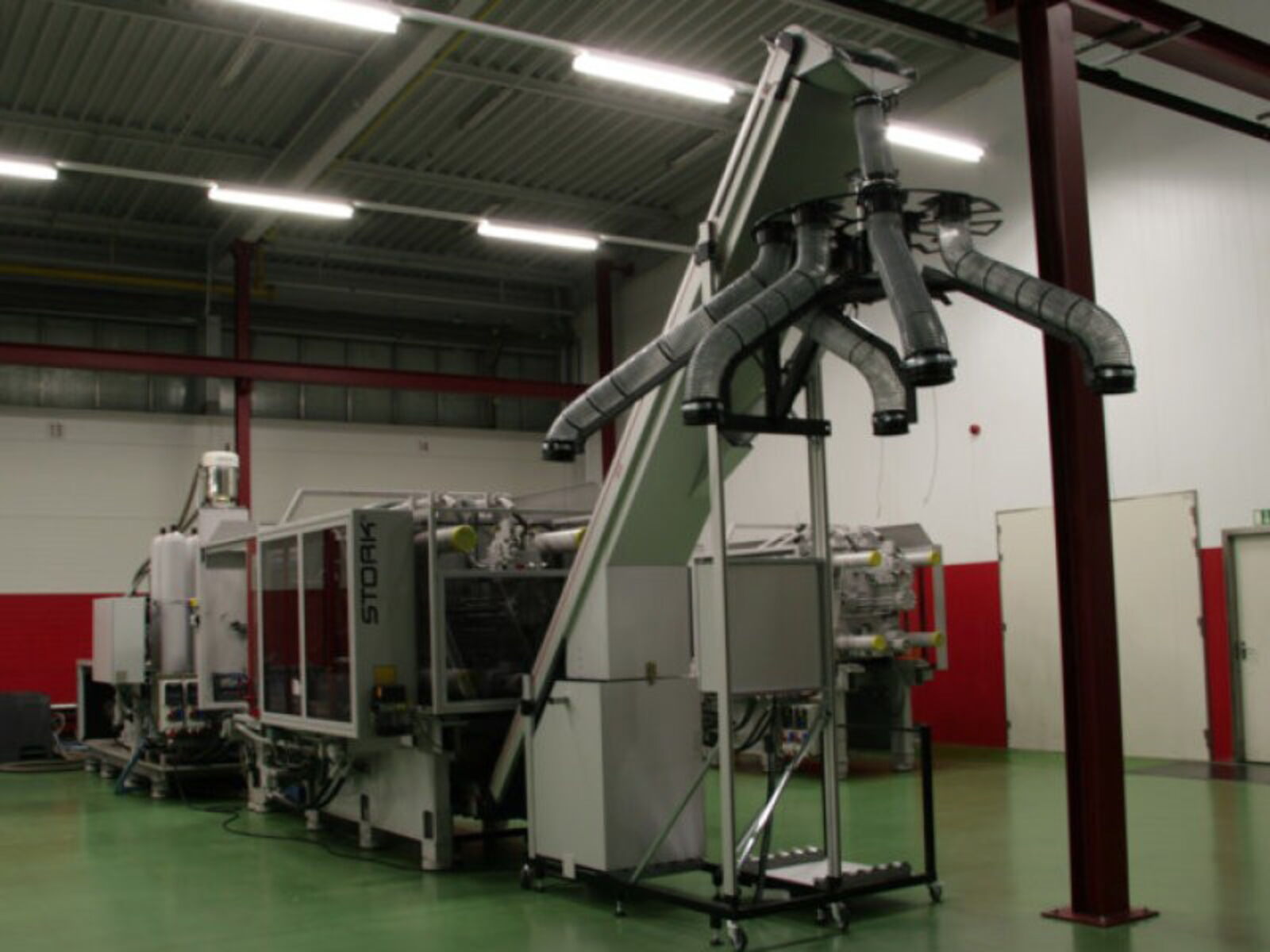

Solution: Angle conveyor belt with attached pipe rotary distributor

A Multi-Tech conveyor belt type NL-LD 120 with extra laterally stable running surface

Each shot is caught in a tunnel compartment.

Drive lugs with perforations to ensure the best possible air circulation

The cleat geometry and conveyor belt body are tailored to the products to prevent damage or jamming.

Quality drawer integrated into the conveyor belt body

Adapting the hopper geometry to the machine's discharge chute

Ultra-thin stainless steel foils for dissipating static charges

Rotary distributor with attached pipe system made of special hoses

Comfortable Siemens S7 controller with versatile statistical functions and intelligent distribution program
