Straight conveyor belt with cross slide

Task: Buffering of plastic parts in containers

Plastic parts are to be buffered directly next to the injection molding machine in 3 containers measuring 600 x 400 x 400 mm.

Empty containers will be fed in via a conveyor belt, while full containers will be accumulated on a roller conveyor.

The system status will be visualized using a 3-color traffic light. Malfunctions will be indicated audibly by a horn.

The entire unit should be mobile and height-adjustable.

A Siemens S7 controller will be used to process counting pulses from the injection molding machine.

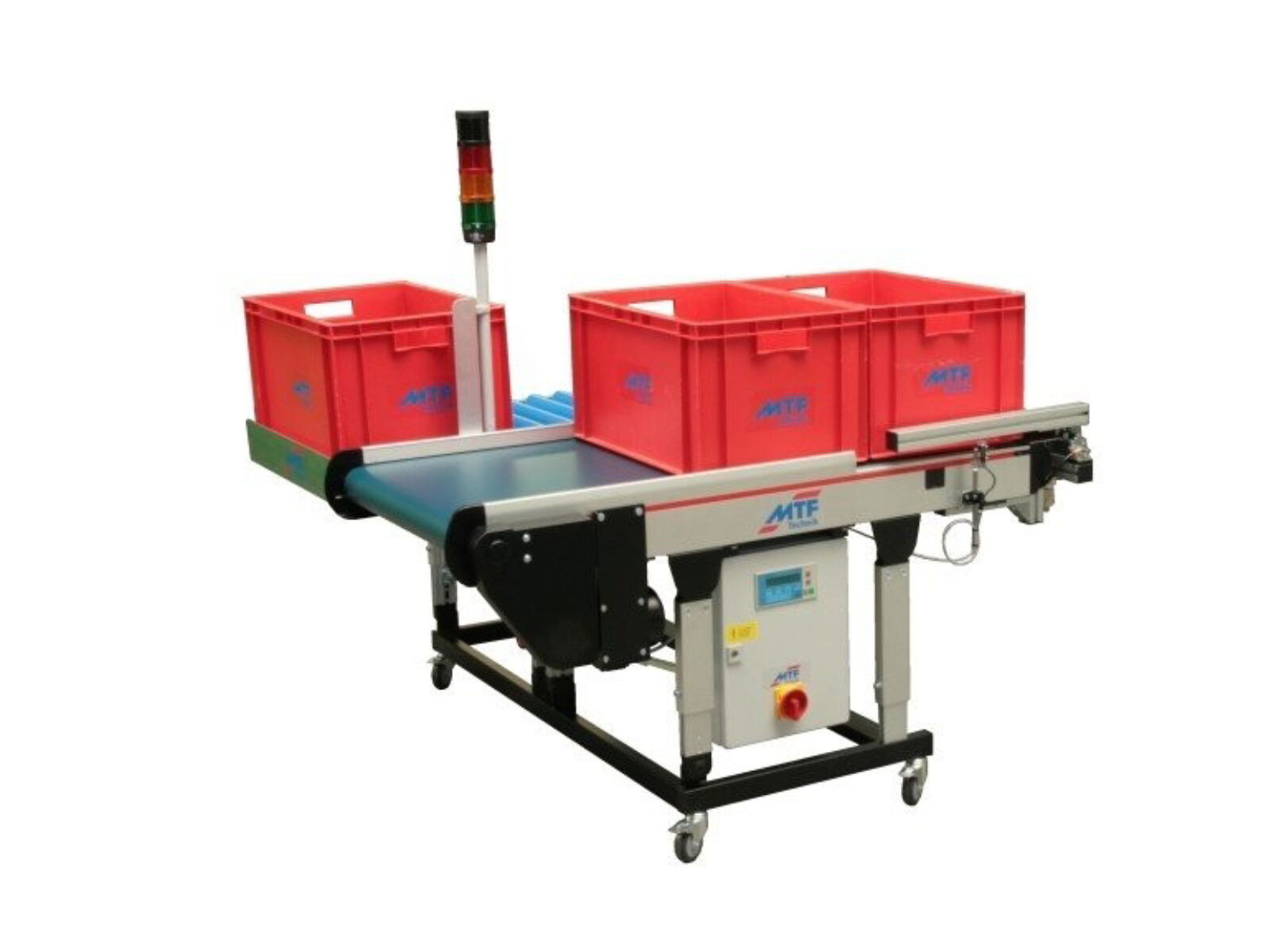

Solution: Buffer belt with cross slide and roller conveyor

Buffer belt type GL-LD 010 with accumulating belt no. 14 for feeding the empty containers

Pneumatic transverse shifting unit at the conveyor belt outlet for transferring filled boxes onto the roller conveyor.

Querying the container position and buffer level using light sensors

3-color signal tower with integrated horn between the two conveyor sections

Control unit is protected and integrated below the conveyor belt in the base frame
