Base Frames - Variable and Stable

Multi-Tech base frames and carriages provide flexibility and stability

The variable base frames, consisting of individual modules, can easily be mounted at any belt body position. Depending on your needs, the base frames can be delivered in a stationary or a mobile version as a carriage.

The easy set-up of the base frame to your MTF conveyor belt is effected by means of T-grooves provided in the guiding profiles. The extremely high manufacturing quality of the steel frame and of the diagonal and cross struts ensure highest stability of the MTF conveyor belts.


Overview of Available Base Frame Types

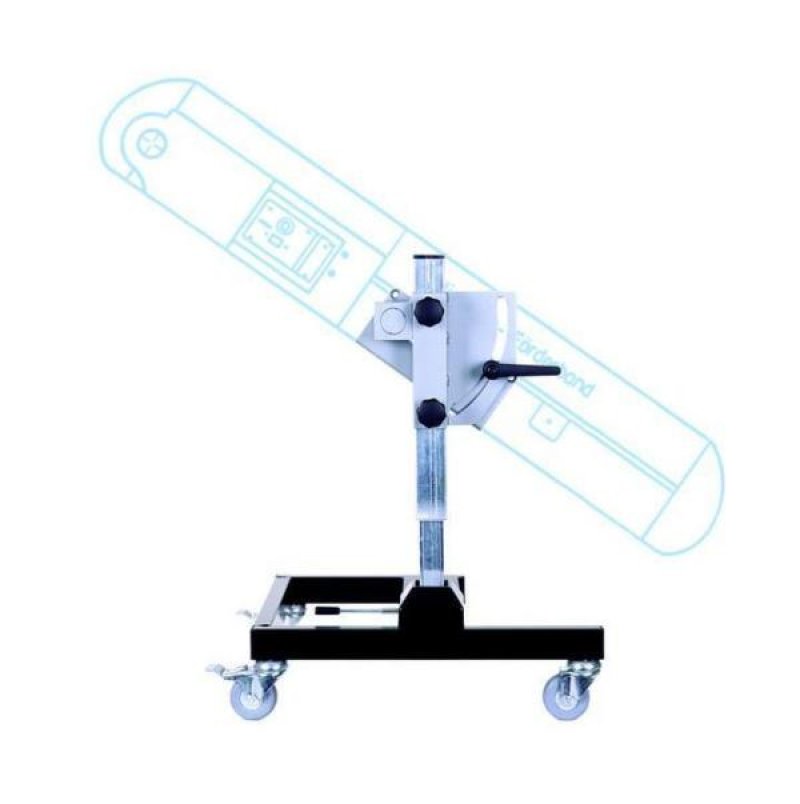

MTF Technik - Type HE 020

Type HE 020

Manually adjustable, lateral position at the conveyor belt, widely adjustable height. For large belt loads, the multiple version HM 140 is used.

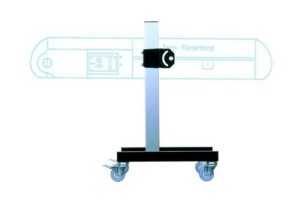

MTF Technik - Type HE 010

Type HE 010

Telescopic, single support in an H-shape, flush side ending with the belt body. Its multiple version HM 010 is used e.g. for deposing conveyor belts.

MTF Technik - Type LD 020

Type LD 020

Closed underframe, which provides extra stability.

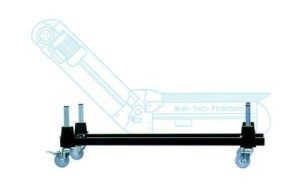

MTF Technik - Type KF 010

Type KF 010

Supported on rails, continuous longitudinal and height adjustment of wheel modules. Used for angled conveyor belts fitted with a short, steep (high-angle) belt.

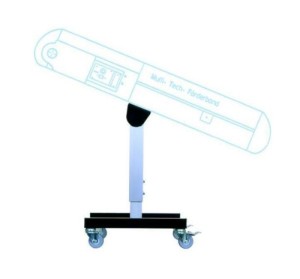

MTF Technik - Type IE 010

Type IE 010

Gas pressure column, easy to adjust, attachment on one side of the conveyor belt.

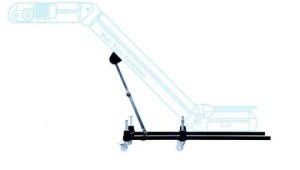

MTF Technik - Type TF 110 / HF 310

Type TF 110 / HF 310

TF 110: T-shaped centre support complete with integrated gas pressure spring, rails with fitted wheel modules, T-grooves for individual wheel adjustment.

HF 310: Version with two integrated gas pressure springs for easy adjustment for wide angular and Z-shaped conveyor belts.

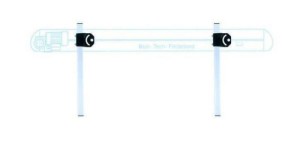

MTF Technik - Type AM 370

Type AM 370

Four or more height-adjustable supports, stationary design, particularly suitable for multiple-level conveyor belts.
