Separating Drum Type 3 R5 B to 3 R12 B

Rectangle Drum

MTF Technik - Separating Drum Type 3 R5 B to 3 R12 B

Rectangle Drum Type 3 R7 B

MTF Technik - Separating Drum Type 3 R5 B to 3 R12 B

Rectangle Drum Type 3 R7 B 'Special'

MTF Technik - Separating Drum Type 3 R5 B to 3 R12 B

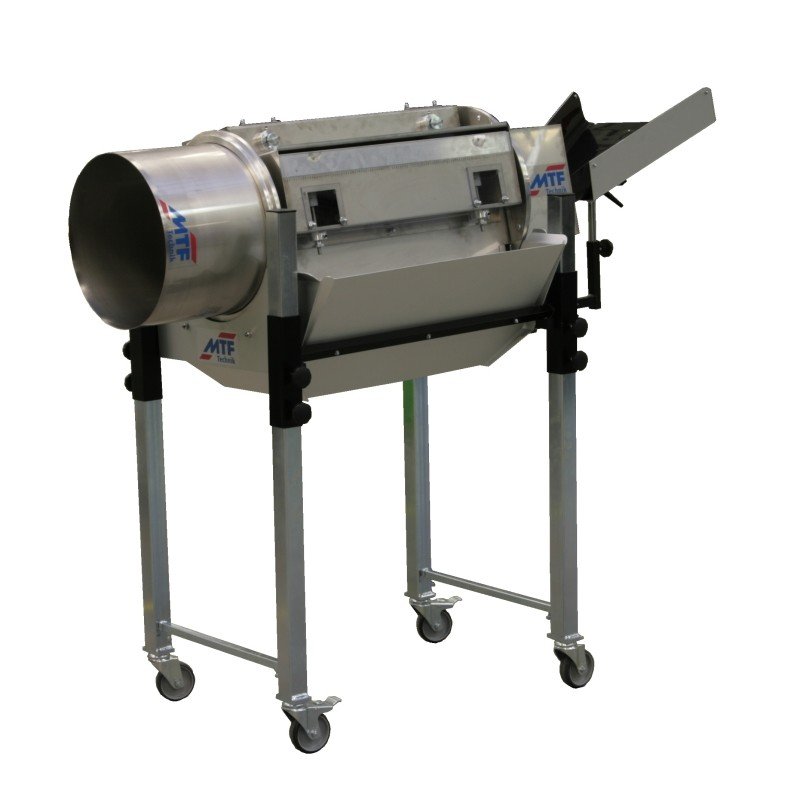

Rectangle Drum Type 3 R5 B

MTF Technik - Separating Drum Type 3 R5 B to 3 R12 B

Rectangle Drum with structured surface for use with stamping parts covered with oil.

MTF Technik - Separating Drum Type 3 R5 B to 3 R12 B

Rectangle Drum 3 R7 B in a special version with height adjustment by means of gas pressure column


With the newly developed rectangle drum Type 3R7 B MTF Technik once more proves its competence in the area of separation. The patented mechanism for preventing part jams makes this drum unique.

The MTF Rectangle Separating Drums, types 3 R5 B to 3 R12 B are used for an automatic separation of parts of different form and size. These drums are particularly suitable for soft, adherent parts which tend to stick together. In addition, parts with minimal difference in size can be separated. The patented mechanism for momentary opening of the separating gap effectively prevents deadlocks in the gaps.

Highlights

After the patents for the separation drums with individual adjustment as well as the planet-central adjustment mechanism, MTF Technik envisions a further novelty with the patented rectangle drum. The rectangle drum uses separation vents opened by an innovative mechanism defined in the upper area of the drum.

  • Defined opening separation gaps effectively prevent piece jams and damage
  • Simple and quick adjustment of the separation gaps
  • Especially suited, for example, to the separation of softer materials that can otherwise easily jam in separation gaps

Advantages

  • Best separating results - as well for difficult parts

  • Quick and precise adjustment of the separating gap

  • No jamming or damaging of the parts due to the self-opening separating gap (patent pending)

  • Stainless steel cages for use in clean room conditions

  • Constantly variable height and inclination of the drums for best adaptation to the separating task

  • Easy replacement of the drum cages (roller cages, perforated cages, "hedgehog" cages, rectangle cages)

  • Simple and convenient operation

  • Solid construction in proven MTF-quality

  • High-performance and powerful planetary gear motors of top quality

  • Constant or continuously adjustable drum speeds

  • Separating gap continuously adjustable between 0 and 60mm

  • Swivelling feed-in chute complete with a sound absorbing polyamide coating

  • Heavy double stand underframe with four steering rollers

Product Information

Rectangle Drum

Inquiry Form

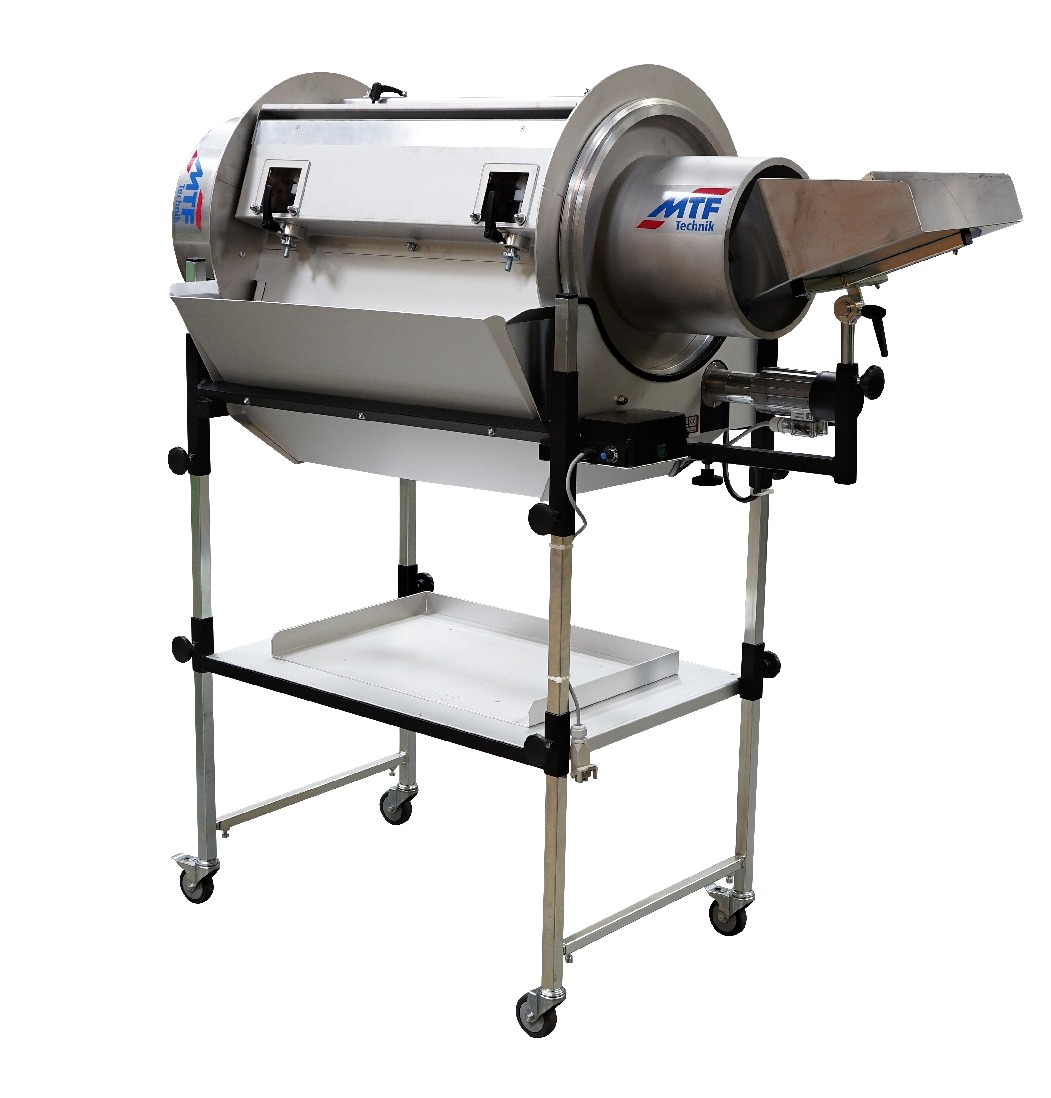

Rectangle Drum Type 3 R7 B


Product Details

MTF Technik - Separating Drum Type 3 R5 B to 3 R12 B

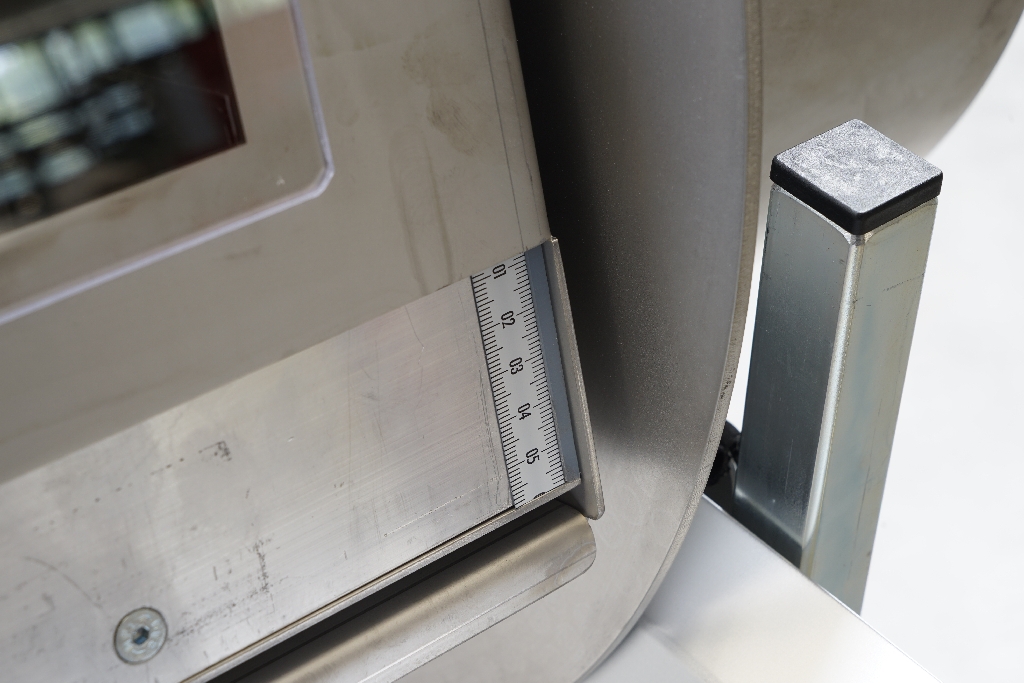

Scale for easy, quick and accurate adjustment of separating shafts (accessory)


Application Examples and Tutorials

Application Video Separation Process with Rectangle Drum Type 3 R7 B

Illustrative example of the functionality of a rectangular separation drum for separating complex part geometries. A rectangular drum with two 80 mm wide surfaces running parallel to each other prevents the sprue from winding through, so that a 100% reliable separation result can be achieved.

Demonstration video: Avoiding clamping processes with wedge-shaped parts in the rectangle drum.


MTF Specialist

Do you need a customized offer?

Please find below Inquiry Forms for standard devices of Conveyor Technique, Separation and Automation in PDF-format.
Go to Inquiry Forms
